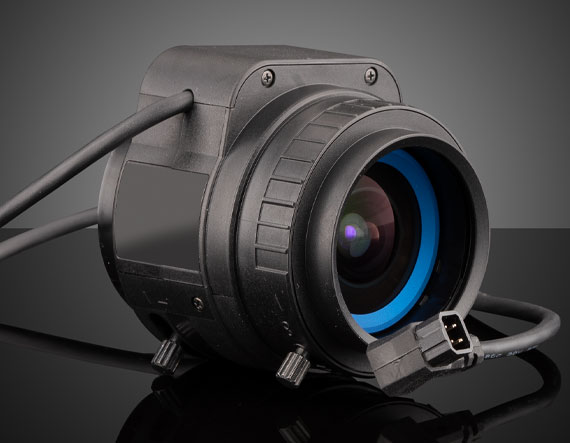

4-10mm FL CS-Mount, DC Auto Iris, IR Corrected Lens

Product Details 4 – 10mm Focal Length Range for up to 135° Horizontal FOV True 4K, 12 Megapixel Resolution IR corrected for Day or Night 4K Wide Angle Lenses provide a wide range of fields of view for applications with long working distance requirements, allowing for excellent resolution up to 12 megapixels. Available with DC auto-iris, P-iris, and manual iris versions, these lenses are ideal for a wide range of applications including Intelligent Traffic (ITS), remote sensing, security, and robotics. The lenses are IR corrected for use with true Day/Night cameras, providing a bright image in both visible and IR illumination without manual adjustment. Lens mounting options include S-mount (M12), CS-mount, and C-mount with motorized and non-motorized versions available. Specifications General Type: Varifocal Lens Physical & Mechanical Properties Iris Option: DC Auto Iris Length (mm): 51.50 Maximum Diameter (mm): 59.0 Weight (g): 78 Optical Properties Horizontal Field of View @ Max Sensor Format: 112° – 44° Focal Length Range (mm): 4-10 Working Distance (mm): 500 – ∞ Aperture (f/#): f/1.4 – Closed Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 1/1.7″ Threading & Mounting Mount: CS-Mount Regulatory Compliance Certificate of Conformance: View ×
