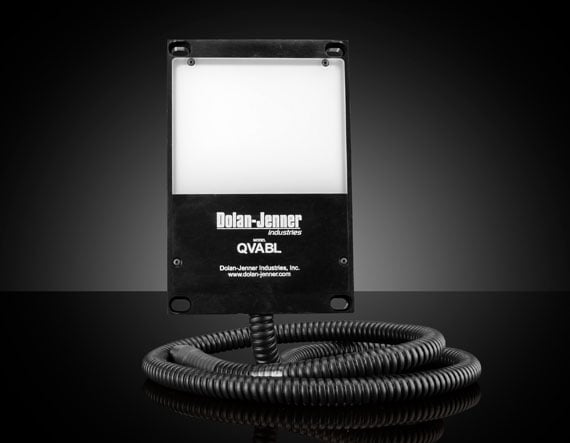

4.25″ x 3.37″ Fiber Optic Backlight

Product Details Light Guide Adapters are required to mate the low profile Fiber Optic Line Lights with fiber optic illuminators. High Contrast, Silhouetted Images Highly Diffuse, Even Light Distribution Ideal for Line Scan Camera Applications Used in 2D Vision Systems Backlighting is a machine vision lighting method that provides a high contrast silhouette of a part or part segment. The object appears black against a uniform white background. Backlights can also be used with color filters, placed at the illuminator input end, to improve the contrast of colored components. Area backlights work well with 2D vision systems. Light guide adapters needed to mate with fiber optic illuminators . Specifications General Packing Fraction (%): 83.00 Type of Illumination: Fiber Optic Light Guide Compatible Light Guide Adapter: SX: #38-946 MX: #66-908 Geometry: Backlight Physical & Mechanical Properties Ferrule Diameter (inches): 0.562 Length (inches): Fiber: 48 Construction: Black Anodized Aluminum Housing Optical Properties Acceptance Angle (°): 68.00 Numerical Aperture NA: 0.55 Fiber Diameter (μm): 50.00 Transmission Loss: 10% per Feet @ 600nm Wavelength Range (nm): 400 – 2000 Regulatory Compliance Reach 174: Compliant × Certificate of Conformance: View ×
