40mm Center of Rotation, Motorized Goniometer Stage, Integrated Controller

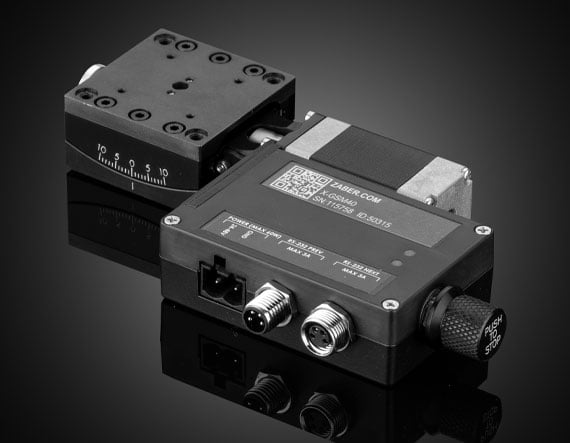

Product Details 40mm and 60mm Center of Rotation Options Vacuum-Compatible Options Small Footprint with a Low Profile for Compact Systems 30N (~3kg) Centered Load Capacity Available with Integrated, 200 Counts per Revolution (CPR) Motor Mounted Encoder Zaber Motorized Goniometers provide electronically controlled, precise angular adjustment of an object about a fixed point located above the center of the mounting surface. Featuring a built-in controller, these goniometers can be controlled manually with an indexed control knob or computer controlled via RS-232 communication or via USB with the included software. Encoder version are available for all travel options, with 200 Counts per Revolution (CPR) rotary quadrature encoders integrated into the stepper motor. Zaber Motorized Goniometers are ideal for providing tip and tilt adjustment for optical components in laser alignment and beam steering applications. These goniometers feature an interlocking alignment system to ensure a common center of rotation when the 40mm and 60mm options are stacked, and can be daisy-chained with additional stages using only one power supply for ease of system integration. Note: A 24-48 VDC universal power supply, data cables for daisy chaining, and computer interface cables (USB or RS-232) are sold separately as accessories. U.S. Tariff Pricing Notice: Pricing for certain products in this family may reflect recent changes in U.S. tariffs on Canadian-origin products. Prices shown include any applicable tariff-related adjustment; no additional tariff surcharge will be added at checkout. Specifications General Type: Metric Encoder: No Manual Control: Yes Note: Requires a 24-48 VDC power supply and either #15-295 for USB connectivity or #15-297 for RS-232 connectivity. A data cable ( #15-296 or #15-299 ) can be used to daisy chain multiple stages together to control simultaneously. Type of Motor: 2-Phase Stepper Physical & Mechanical Properties Type of Movement: Goniometer Guide System: Crossed Roller Bearing Stage Size (mm): 40 x 40 Travel (°): ±10 Accuracy (°): 0.06, Unidirectional Backlash (°): < 0.01 Height (mm): 20.8 Load Capacity (kg): 3 Load Capacity (N): 30 (Centered Load) Radius R (mm): 40 Repeatability (°): < 0.005 Resolution (μrad): 2.837 Speed (°/s): Max: 30 Weight (kg): 0.271 Electrical Current (mA): 350 Hardware & Interface Connectivity Type of Drive: Precision Worm Gear Power Supply: Power Supply Required and Sold Separately: USA: #70-960 (1.2A), #70-961 (3.7A), #70-962 (6.5A) Europe: #70-960 (1.2A), #70-961 (3.7A), #70-962 (6.5A) Japan: #23-662 (2.5A) Korea: #33-773 (2.0A) China: #70-960 (1.2A), #70-961 (3.7A), #70-962 (6.5A) Computer Interface: USB with #15-295 RS-232 with #15-297 Environmental & Durability Factors Operating Temperature (°C): 0 to +50 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
