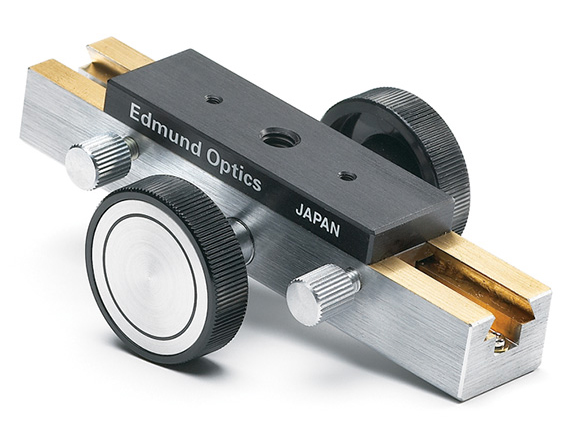

40mm Travel, Small Precision Single Axis Movement

Product Details Multiple Configurations Available High Load Capacity Ideal for Applications Requiring Long Travel Additional Rack and Pinion Stages Available Basic Rack and Pinion Stages are ideal for applications requiring high load capacity or long travel. These stages feature horizontal load capacities of 3.5kg and vertical load capacities of 2.1kg. Each stage offers stage and base mounting holes and features steel construction with brass movement. Basic Rack and Pinion Stages are available in multiple configurations with varying stage sizes. These stages have a Dovetail guide system. Specifications General Type: English Note: Lockable Physical & Mechanical Properties Type of Movement: Linear (X) Guide System: Dovetail Stage Size (mm): 20 x 100 Travel (mm): 40 (±20) Load Capacity (kg): 3.5 Horizontal, 2.1 Vertical Straight Line Accuracy (μm): 50 Travel Per Knob Rotation (mm): 15 Weight (g): 250 Table Size (mm): 20 x 60 Hardware & Interface Connectivity Type of Drive: Rack and Pinion Threading & Mounting Mounting Threads: Stage: (1) ¼-20 Base: (2) 8-32 Regulatory Compliance RoHS 2015: Exempt × Reach 224: Contains SVHC(s) × Certificate of Conformance: View ×
