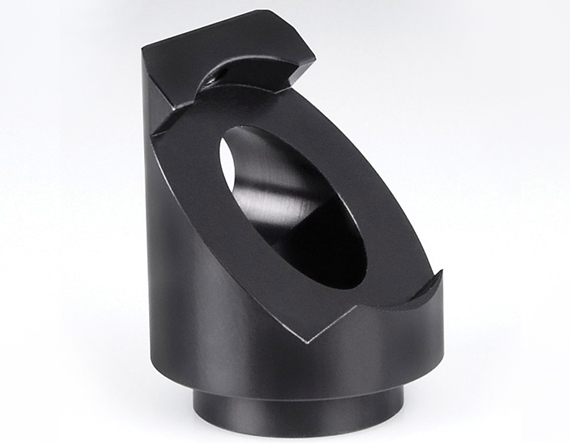

45° Mirror Mount

Product Details Interchangeable to Quickly Swap Optics Plate and Cube Beamsplitter Mount Options Anodized Aluminum Construction Adjustable Optical Mounts Also Available Designed to fit within the inner diameter of 25mm and 30mm standard cage system plates , TECHSPEC Cage System Fixed Optical Mounts are ideal for mounting beamsplitters and additional optical components. The #85-699 45° Plate Beamsplitter Mount can also fit within #85-695 25.4mm Kinematic Mount. Additionally, Cube Beamsplitter Mounts can be connected to cage system tubes utilizing the tubes’ M23.2 x 0.75 threaded inner diameter. Specifications General Function: Fixed Type of Optics: Circular Physical & Mechanical Properties Compatible Plate Inner Diameter (mm): 25.0 Clear Aperture CA (mm): 12.0 Construction: Black Anodized Aluminum Dimensions (mm): 25.0 Threading & Mounting Size of Compatible Optics (mm): 25.0 Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
