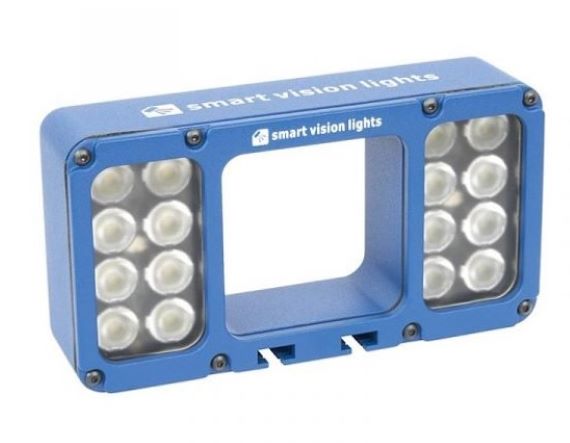

470nm 150mm Compact Light w/ Multi-Drive

Product Details Direct Connect and Control via Camera’s Trigger Output Built-In Multi-Drive Technology T-Slots for Mounting Smart Vision Lights Compact Ring Lights are IP65-rated brightfield lights featuring a working distance of 500-mm to 2000-mm that can be directly connected to a camera for control via the trigger output. Built-in Multi-Drive technology, which offers both continuous operation and OverDrive mode, delivers up to 6 times the continuous power with a low-latency response and fast strobe durations down to 10mS. These lights feature a batwing design that illuminates a larger area than built-in lighting systems and produces a greater light output making them ideal to use alongside polarizers, diffusers, and other optical elements that reduce light output. Smart Visions Lights Illumination products offer an industry-leading 10-year limited warranty. Specifications General Model Number: JWL150-MD-470 Type of Illumination: LED Illuminator Manufacturer: Smart Vision Lights LLC Geometry: Ring Light Illumination Mode: Constant or Strobed Physical & Mechanical Properties Dimensions (mm): 158.75 W x 84.25 H x 40.18 D (58.15 D Including Connector) Weight (g): 589.67 Active Area (mm): 65.38W x 65.38W Optical Properties Color: Blue Wavelength (nm): 470 Working Distance (mm): 500 – 2,000 Electrical Strobe Duration (μs): 30 – ∞ Hardware & Interface Connectivity Connector: 5-pin M12 connector Input Voltage (V): 24 VDC ± 5% Threading & Mounting Mount: T-Slot for M6 Nut Environmental & Durability Factors Operating Temperature (°C): -10° to +40° Environmental Rating: IP65 Regulatory Compliance Certificate of Conformance: View ×
