5.0 – 100.0mm Optic Dia., Self-Centering Jaw Clamp

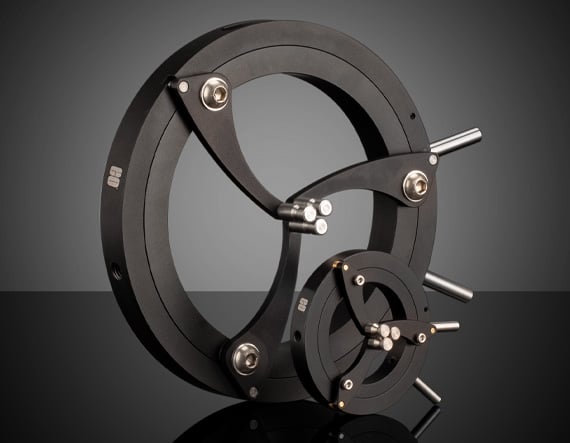

Product Details Two Mount Sizes Available, for 4mm-36mm and 5mm-100mm Dia. Optics Optical Centerline Remains Constant Regardless of Optical Diameter Mounts Feature Both Metric and English Tapped Mounting Holes Self-Centering Jaw Clamps are ideal for easily interchanging optics of different diameters in a system while maintaining a constant optical centerline of the system. Mounts are available for either mounting 4mm to 36mm diameter optics ( #16-077 ) or 5mm to 100mm diameter optics ( #16-078 ). The small jaw clamp features both M4 x 0.7 and 8-32 tapped mounting holes, while the large jaw clamp features both M6 x 1.0 and ¼”-20 tapped mounting holes. The stainless-steel tipped jaws feature a v-groove to help vertical alignment of thinner optics. Self-Centering Jaw Clamps are directly mountable to TECHSPEC Stainless Steel Mounting Posts and Pedestal Posts . Specifications General Type: Fixed Type of Optics: Circular Physical & Mechanical Properties Height (mm): 166 Outer Diameter (mm): 138 Weight (lbs): 0.68 Construction: Black Anodized Aluminum Threading & Mounting Size of Compatible Optics (mm): 5.0 – 100.0 Compatible Post: M6 x 1.0, ¼-20 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
