50.0/50.8mm Optic Dia., E-Series Clear Edge Kinematic Mount

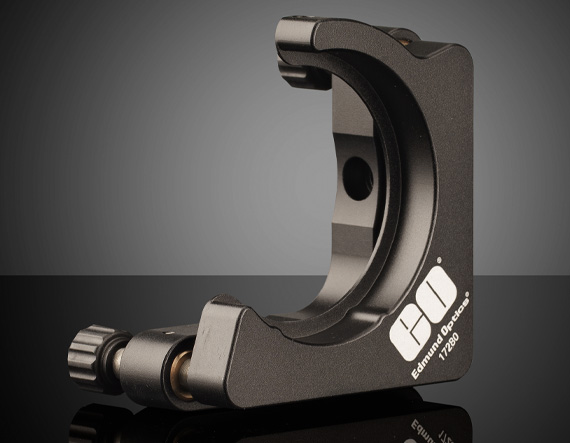

Product Details 120° Clear Edge for Mounting Beamsplitters and Transmissive Optics Economically Priced Essential Mounts for Experiments and OEM Systems E-Series Clear Edge Kinematic Optical Mirror Mounts offer many features essential for applications in R&D, prototyping, and system integration. Featuring a 120° cut out, these mounts are ideal for mounting beamsplitters and transmissive optics while accommodating a wider beam path when mounted at a 45° angle. The two M6 x 0.25 (101.6 TPI) adjustment screws provide smooth movement and can be driven by hand or by Allen key (2mm key size) for tip and tilt optical adjustment and alignment (±3.5°). The adjustment screw knobs are removable to create a more compact form factor. E-Series Clear Edge Kinematic Optical Mirror Mounts feature mounting holes with both a counterbore designed to accommodate M4 or 8-32 mounting hardware, and M6 x 1.0 internal threads for increased mounting versatility and direct compatibility to TECHSPEC Stainless Steel Mounting Posts and Pedestal Posts . Specifications General Type: Adjustable – Tip-Tilt Type of Optics: Circular Number of Adjustment Screws: 2 Physical & Mechanical Properties Clear Aperture CA (mm): 46 Construction: Aluminum Plates, Stainless Steel Screws, and Brass Thread Bushings Fine Tilt Angle (°): ±3.5 Fine Tip Angle (°): ±3.5 Adjustment Screw Pitch (mm): 0.25 Min. Thickness of Compatible Optics (mm): 2 Optical Axis Height (mm): 38.10 Threading & Mounting Size of Compatible Optics (mm): 50.0 – 50.8 Compatible Post: M6 x 1.0, M4 x 0.7, 8-32 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
