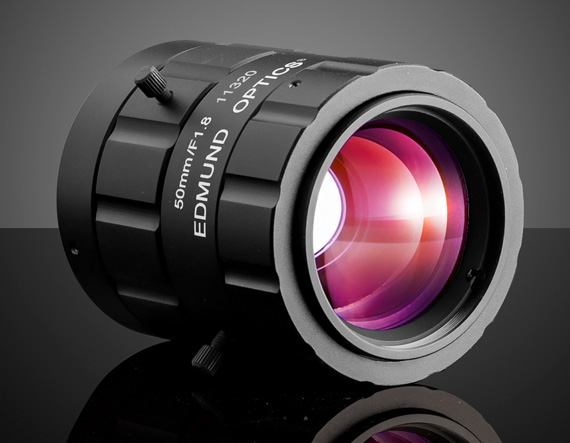

50mm CA Series Fixed Focal Length Lens

Product Details APS-C (27.9mm), TFL-Mount Lens or M40 Mount Lens Greater than 30 MegaPixels, 3.45µm Pixel Size Sensors High Resolution, Compact APS-C Lens (CA) 35mm to 100mm Focal Length TECHSPEC CA (Compact APS) Series Fixed Focal Length Lenses are designed for high-resolution large-format sensors. Covering the APS-C format sensors with a 28mm image circle, these lenses feature a TFL Mount or M40 Mount. TFL Mounts feature an M35 x 0.75 thread with a 17.526mm flange distance and offer the same robustness and ease of use as C-Mount. M40 Mounts feature a M40 x 0.75 thread with also with a 17.526mm flange distance. M40 Mount lenses provides a robust, large format mounting solution ideal for high-resolution and larger image sensors with improved mechanical stability and optical performance compared to smaller format mounts. TECHSPEC CA Series Fixed Focal Length Lenses offer a compact size while accommodating large format sensors, making them ideal for machine vision and factory automation applications. These lenses won the 3rd place 2020 Inspect Award and the Silver-Level 2020 VSD Innovators Award . Specifications General Product Family: CA Series Type: Fixed Focal Length Lens Imaging Lens Type: High Performance Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 72.58 Maximum Diameter (mm): 50 Outer Diameter (mm): 50 Weight (g): 276 Maximum Rear Protrusion (mm): 0 Optical Properties Field of View at Max Sensor Format: Horizontal: 93.5mm – 25.2° Vertical: 70.1mm – 19° Diagonal: 116.8mm – 31.2° Horizontal Field of View, APS-C Sensor: 93.8mm – 25.2° Horizontal Field of View, 4/3″ Sensor: 72.4mm – 19.6° Horizontal Field of View, 1.1″ Sensor: 59.5mm – 16.1° Horizontal Field of View, 1″ Sensor: 52.6mm – 14.6° Horizontal Field of View, 2/3″ Sensor: 36.1mm – 10.1° Horizontal Field of View, 1/1.8″ Sensor: 30.1mm – 8.2° Horizontal Field of View, 1/2″ Sensor: 26.8mm – 7.3° Horizontal Field of View, 1/2.5″ Sensor: 24.3mm – 6.6° Horizontal Field of View, 1/3″ Sensor: 20.1mm – 5.5° Horizontal Field of View, 1/4″ Sensor: 15.1mm – 4.1° Maximum Image Circle (mm): 27.90 Numerical Aperture NA, Object Side: 0.059 Number of Elements (Groups): 7 (5) Focal Length FL (mm): 50.00 Working Distance (mm): 200 – ∞ Aperture (f/#): f/1.8 – f/16 Coating: λ/4 MgF 2 Coating Specification: λ/4 MgF 2 Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 30.93 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 55.36 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -27.42 Maximum Distortion (%): -0.36 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -75.18 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: APS-C Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M37.5 x 0.50 (Female) Mount: TFL-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × REACH 241: Compliant ×
