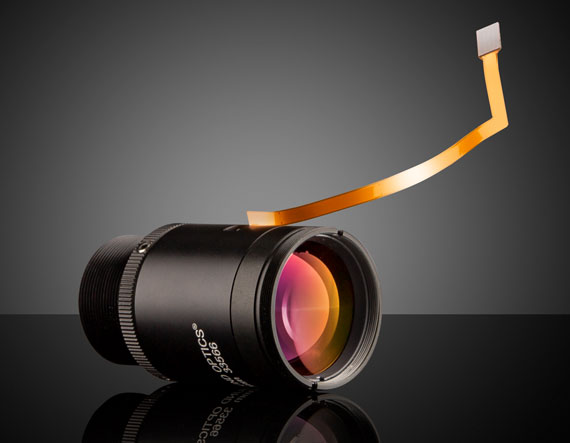

50mm, f/7, Liquid Lens Cx Series Fixed Focal Length Lens

Product Details Specifications General Product Family: LL Cx Series Note: Separate driver not included. Electronic development kit #28-773 recommended. When using a Maxim driver board (#12-247, #12-248, or #17-172) the jumper at ST2 must be removed before use to ensure optimal performance and product lifetime. Watch this video for more information. Type: Fixed Focal Length Lens Integrated Liquid Lens Model: Corning Varioptic A-39N0 Imaging Lens Type: Integrated Liquid Lens to Adjust Focus Electronically Special Type of Lens: Liquid Lens Focusable Physical & Mechanical Properties Iris Option: Fixed Length (mm): 54.70 Maximum Diameter (mm): 30.5 Outer Diameter (mm): 30.5 Weight (g): 72 Maximum Rear Protrusion (mm): 0 Optical Properties Field of View at Max Sensor Format: Horizontal: 42mm – 9.4° Vertical: 31.5mm – 7° Diagonal: 52.6mm – 11.7° Horizontal Field of View, 2/3″ Sensor: 44.7mm – 9.2° Horizontal Field of View, 1/1.8″ Sensor: 36.6mm – 7.5° Horizontal Field of View, 1/2″ Sensor: 32.5mm – 6.7° Horizontal Field of View, 1/2.5″ Sensor: 29.5mm – 6.1° Horizontal Field of View, 1/3″ Sensor: 24.4mm – 5.0° Maximum Image Circle (mm): 11.00 Numerical Aperture NA, Object Side: 0.0128 Number of Elements (Groups): 7 (5) Focal Length FL (mm): 50.00 Working Distance (mm): 250 – ∞ Aperture (f/#): f/7 Coating Specification: 425 – 675nm BBAR Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 25.16 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 46.27 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -41.22 Maximum Distortion (%): 0.17 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -76.82 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 2/3″ Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M25.5 x 0.50 (Male) Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
