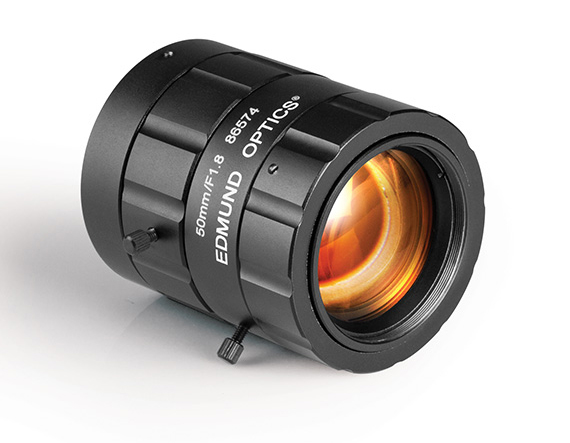

50mm Focal Length, HP Series Fixed Focal Length Lens

Product Details 1.1″, C-Mount Lens Up to 20 MegaPixels, 1.85µm Pixel Size Sensors High Performance (HP), C-Mount Lens for Machine Vision 6.5mm to 50mm Focal Length TECHSPEC HP Series Fixed Focal Length Lenses are designed for the harsh demands of factory automation (FA) and machine vision (MV) applications. The 6.5mm, 8mm, 12mm, 16mm, 25mm, and 35mm lenses are compatible with 1” and 1.1” sensor formats, while the 50mm lens is compatible with up to 4/3” sensor formats. The f/1.8 and f/2.8 apertures provide increased light throughput and high resolution performance. TECHSPEC HP Series Fixed Focal Length Lenses are C-Mount and feature a locking focus and iris rings to prevent unwanted adjustments, as well as a front filter thread for integrating standard optical filters. Call for OEM Quantity Pricing. Edmund Optics has created a family of high performance optical designs (the HP Series family) and developed three customized optomechanical solutions targeted for specific applications. These lens sub-families utilize the same optics as the HP Series lenses providing the same optical performance in a variety of optomechanical solutions to meet your application requirements: HP Series: Features locking cam focus and iris adjustment. This is the most adjustable version of these optical designs and is the typical high quality machine vision lens. HPi Series : Simplified mechanics featuring fixed apertures with compact housing. Industrial Ruggedization for reduced size, cost, and locked focus. HPr Series : All optics glued in place and a locking C-clamp focus ring. Stabilized Ruggedization for reduced pixel shift and improved focus stability. Specifications General Product Family: HP Series Type: Fixed Focal Length Lens Imaging Lens Type: High Performance Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 76.58 Maximum Diameter (mm): 50 Outer Diameter (mm): 50 Weight (g): 279 Maximum Rear Protrusion (mm): 0 Maximum Length (mm): 72.6 Minimum Length (mm): 61 Optical Properties Horizontal Field of View @ Max Sensor Format: 20.5° Field of View at Max Sensor Format: Horizontal: 72.4mm – 19.6° Vertical: 54.1mm – 14.8° Diagonal: 90.9mm – 24.4° Horizontal Field of View, 4/3″ Sensor: 72.4mm – 19.6° Horizontal Field of View, 1.1″ Sensor: 16.2° Horizontal Field of View, 1″ Sensor: 14.6° Horizontal Field of View, 2/3″ Sensor: 10.0° Horizontal Field of View, 1/1.8″ Sensor: 8.2° Horizontal Field of View, 1/2″ Sensor: 7.3° Horizontal Field of View, 1/2.5″ Sensor: 6.6° Horizontal Field of View, 1/3″ Sensor: 5.5° Horizontal Field of View, 1/4″ Sensor: 4.1° Maximum Image Circle (mm): 21.60 Numerical Aperture NA, Object Side: 0.0595 Number of Elements (Groups): 7 (5) Focal Length FL (mm): 50.00 Working Distance (mm): 200 – ∞ Aperture (f/#): f/1.8 – f/16 Coating: λ/4 MgF 2 Coating Specification: λ/4 MgF 2 Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 30.94 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 55.37 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -27.42 Maximum Distortion (%): -0.21 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -75.19 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 4/3″ Pixel Size (μm): 1.85 Threading & Mounting Filter Thread: M37.5 x 0.50 (Female) Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 240: Compliant ×
