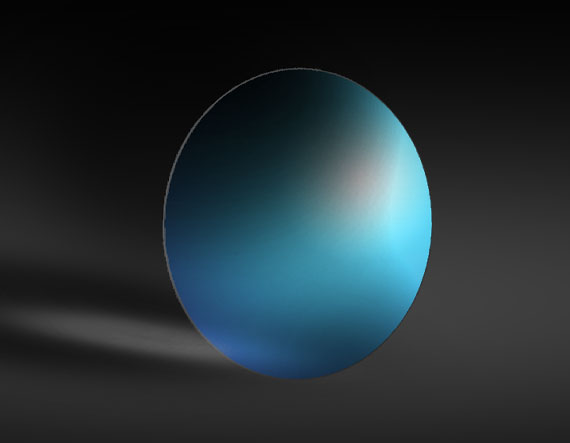

550nm 12.5mm, Ultra-Thin OD4 Shortpass Filter

Product Details Ultra-thin 300µm Construction OD ≥4.0 Blocking and >85% Average Transmission Lightweight and Scratch Insensitive Everix Ultra-Thin OD 4.0 Shortpass Filters are constructed from layers of ultra-thin polymers and dyes that deliver the same performance as thick traditional filters but in a compact 300µm, flexible filter design. These filters cover wavelengths from the visible to the near infrared (NIR) regions and offer rejection levels meeting optical densities ≥4.0 while providing >85% average transmission. Custom bandpass filters can be created by combining these filters with the Everix Ultra-Thin OD4 Longpass Filters to assist with the elimination of stray light. Everix Ultra-Thin OD 4.0 Shortpass Filters are ideal for a variety of weight sensitive applications in medical technology, automation, and autonomous vehicles. Everix’s proprietary ultra-thin filter technology yields filters which are less sensitive to scratches and other imperfections than comparable coated filters. Note: For custom filter designs please contact us for more information. Specifications General Type: Shortpass Filter Physical & Mechanical Properties Diameter (mm): 12.45 ±0.15 Thickness (mm): 0.30 Clear Aperture (%): 90 Optical Properties Optical Density OD (Average): ≥4.0 Cut-Off Wavelength (nm): 550.00 ±11.0 Rejection Wavelength (nm): 569.4 – 633.3 Transmission (%): >80% (average) Transmission Wavelength (nm): 400 – 530.9 Regulatory Compliance Certificate of Conformance: View ×
