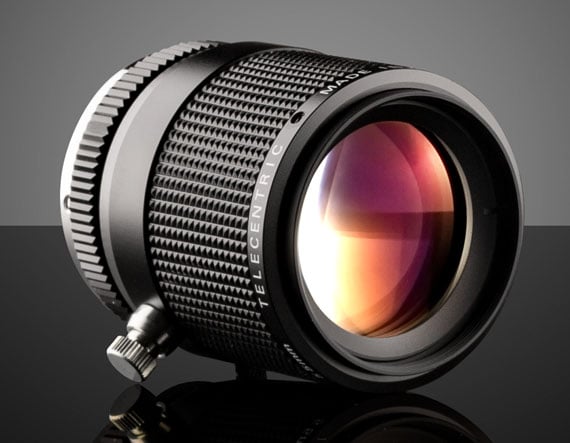

55mm Focal Length Partially Telecentric Video Lens

Product Details 2/3″, C-Mount Lens Up to 1.3 MegaPixels, 7µm Pixel Size Sensors Function as Both Macro and Telecentric Lens ±12.5mm of Object Movement Before 1% Error Image Scale Occurs 55mm FL Partially-Telecentric Imaging Lenses allow ±12.5mm of object movement (at 0.5X magnification) before a 1% error in image scale occurs, while conventional lenses permit typically ±1.7mm of movement under the same conditions. Telecentric lenses yield constant magnification over a range of working distances, virtually eliminating viewing angle error. The lens’ protective window (at C-Mount end) needs to be removed for use with adapter lenses. 55mm FL Partially-Telecentric Imaging Lenses are ideal in machine vision applications requiring accurate measurement of three-dimensional objects with slight height variations. By eliminating the perspective distortion and magnification error inherent in conventional lenses, they yield dimensionally accurate images that are easily interpreted by software. For mounting these lenses, our Industrial Boom Stands and mounting adapters are recommended as workstation platforms. Ring light guides can not be mounted directly on this lens because of the front focusing adjustment. Specifications General Product Family: 55mm FL Partially-Telecentric Imaging Lenses Note: PMAG: Non-Telecentric: 0.5X – 0X Telecentric: 0.5X – 0.4X Working Distance (mm): Non-Telecentric: 127 – ∞ Telecentric: 127 – 158.75 Type: Telecentric Lens Special Type of Lens: Partially Telecentric Physical & Mechanical Properties Iris Option: Variable Length (mm): 92.90 Maximum Diameter (mm): 53 Outer Diameter (mm): 53 Weight (g): 314.68 Optical Properties Horizontal Field of View, 1/2″ Sensor: Non-Telecentric: 12.8mm – 6.7° Telecentric: 12.8 – 16.0mm Maximum Image Circle (mm): 11.00 Focal Length FL (mm): 55.00 Primary Magnification PMAG: 0.5X – 0.4X Working Distance (mm): 127 – 158.75 Aperture (f/#): f/2.8 – f/32 Distortion (%): <1.0 Magnification: 0.5X - 0.4X Maximum Distortion (%): 1 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 2/3" Pixel Size (μm): 7.00 Threading & Mounting Filter Thread: M43 x 0.75 Mount: C-Mount Regulatory Compliance RoHS 2015: Exempt × Reach 224: Contains SVHC(s) × Certificate of Conformance: View ×
