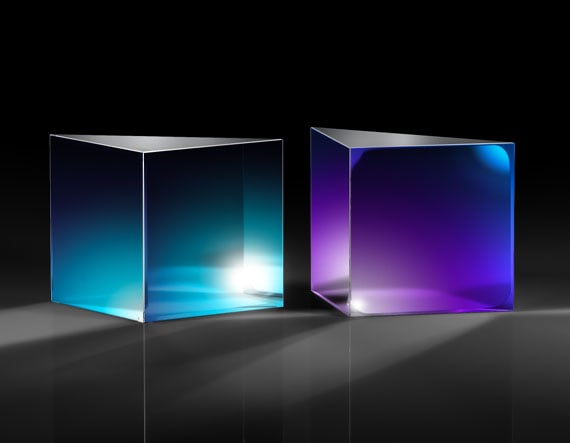

5mm, 400 – 750nm Dielectric, N-BK7 Right Angle Mirror (Legs Coated)

Product Details Splits Input Image into Two Paths Separated by 180° >99% Average Reflectivity Over 400 – 750nm Additional Right Angle Prism and 90° Specialty Mirror Options Available TECHSPEC Broadband Dielectric Coated Right Angle Mirrors (Legs Coated) are constructed from right angle prisms with a dielectric mirror coating on the two legs and an uncoated hypotenuse. The mirrored surfaces form a precise 90° angle, ideal for splitting an image from a single imaging lens onto two different cameras, or for combining two images onto a single camera. These mirrors are available in a range of sizes from 5 – 75mm and coated on an N-BK7 substrate. TECHSPEC Broadband Dielectric Coated Right Angle Mirrors (Legs Coated) feature greater than 99% reflectivity from 400 – 750nm, increasing system performance by decreasing energy loss compared to standard metal coated mirrors. Specifications General Type: Right Angle Mirror Physical & Mechanical Properties Dimensional Tolerance (mm): ±0.1 Length of Hypotenuse (mm): 7.10 Length of Legs (mm): 5.00 Clear Aperture (%): 90.00 Bevel: Protective as needed Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More N-BK7 Coating: Dielectric Mirror (400 – 750nm) Coating Specification: Legs – R avg ≥98% @ 400 – 750nm (0 – 45°) R avg ≥99% @ 400 – 750nm (0°) Wavelength Range (nm): 400 – 750 Angle Tolerance (arcmin): ±2 Surface Quality: 40-20 Image Orientation: Left-Handed Power (fringes) @ 632.8nm: 1.25 Irregularity (fringes) @ 632.8nm: 0.50 Ray Deviation (°): 90.00 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
