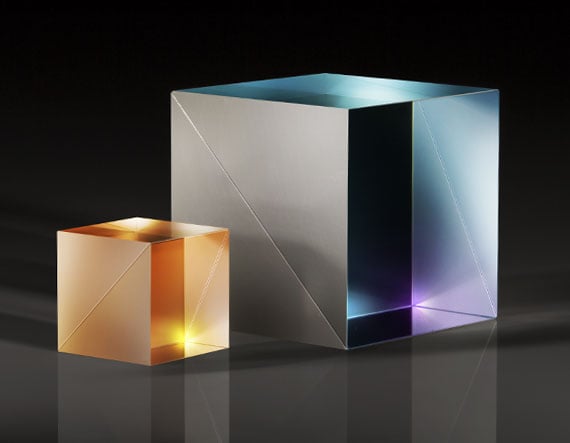

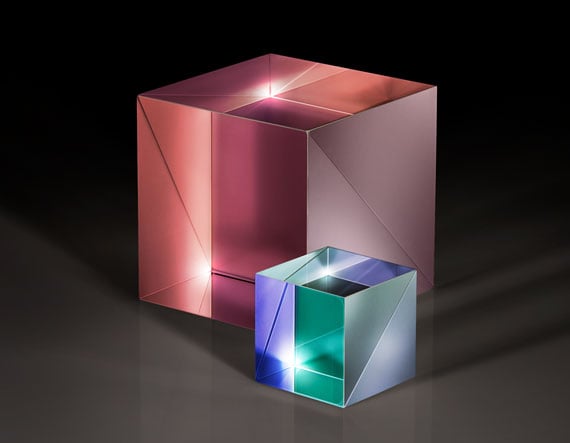

5mm 532nm, Laser Line Non-Polarizing Cube Beamsplitter

Product Details <3% Transmission Difference for S and P Polarization States AR Coated <0.25% on Entrance and Exit Faces Nd:YAG and HeNe Options TECHSPEC Laser Line Non-Polarizing Cube Beamsplitters offer users the ability to split light evenly into orthogonal paths regardless of the incoming polarization state. These cubes are designed with a metallic-dielectric hybrid coating that yields less than a 3% difference in transmission for S-polarized and P-polarized light. These cubes are compatible with common Nd:YAG and HeNe lasers and are available with three beamsplitter coating options at 1064nm, 632nm, and 532nm. Efficiency is enhanced with AR coatings on the entrance and exit faces featuring <0.25% reflection per surface. TECHSPEC Laser Line Non-Polarizing Cube Beamsplitters will displace a beam by less than 2 arcmin, making them easy to integrate into alignment sensitive applications. Specifications General Type: Non-Polarizing Beamsplitter Physical & Mechanical Properties Bevel: Protective as needed Clear Aperture (%): 90 Construction: Cube Dimensions (mm): 5.0 x 5.0 x 5.0 ±0.1 Optical Properties Beam Deviation (arcmin): ±2 Coating Specification: <0.25% Reflection on Entrance and Exit Faces Design Wavelength DWL (nm): 532 Reflection/Transmission Tolerance (%): ±5 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More N-BK7 Surface Quality: 40-20 Transmission (%): <45% ±5% @ DWL |Ts-Tp|: <3% @ DWL Power (fringes) @ 632.8nm: 1.50 Irregularity (fringes) @ 632.8nm: 0.25 Regulatory Compliance RoHS 2015: Compliant × Reach 219: Compliant × Certificate of Conformance: View ×
