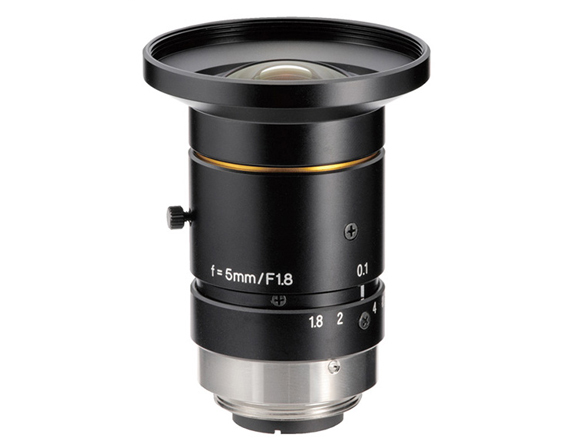

5mm FL Ultra High Resolution Fixed Focal Length Lenses

Product Details 2/3″, C-Mount Lens Up to 10 MegaPixels, 2.4µm Pixel Size Sensors Spectral Range of 400 – 1000nm 5mm to 50mm Focal Lengths Ultra High Resolution Fixed Focal Length Lenses are designed to provide 10 MegaPixel resolution on axis. These lenses have a spectral range of 400 to 1000nm. Through the use of a floating focus and aspheric lens elements, these high-resolution lenses are able to maintain excellent performance from 100mm to infinity. Ultra High Resolution Fixed Focal Length Lenses feature locking focus, iris rings, and a front filter thread to allow the use of standard optical filters for increased versatility. The lenses are available in 7 focal length options and feature very low distortion. Specifications General Product Family: ltra High Resolution Fixed Focal Length Lenses Type: Fixed Focal Length Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 57.10 Maximum Diameter (mm): 48.0 Outer Diameter (mm): 48 Weight (g): 120.00 Optical Properties Field of View @ Min Working Distance (mm): 142.5 Horizontal Field of View, 1/2″ Sensor: 142.5mm – 64.9° Maximum Image Circle (mm): 11.00 Focal Length FL (mm): 5.00 Working Distance (mm): 100 – ∞ Aperture (f/#): f/1.8 – f/16 Maximum Distortion (%): <-0.33% Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 2/3" Pixel Size (μm): 2.40 Threading & Mounting Filter Thread: M46 x 0.75 Mount: C-Mount Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × REACH 241: Contains SVHC(s) ×
