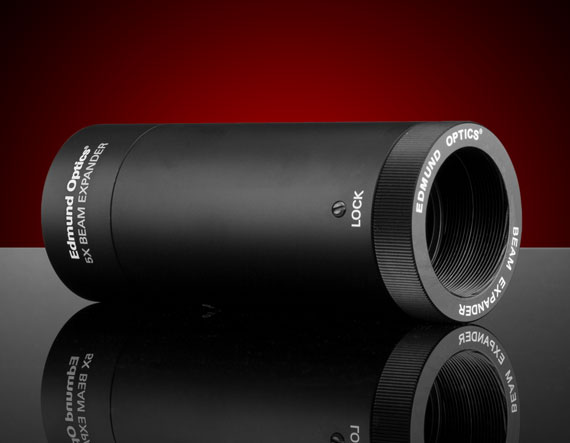

5X Arcturus HeNe Beam Expander

Product Details AR Coated for HeNe Laser Wavelength of 633nm Fixed Magnifications Available from 3X to 20X Divergence Adjustable with Non-Rotating Optics TECHSPEC Arcturus HeNe Beam Expanders offer high performance optical designs packaged in a precise opto-mechanical platform. Two full rotations of the adjustment knurl provide smooth movement for the optics in order to vary the output from collimated to the minimum focus distance of 1.2 meters. The precise adjustment mechanism keeps optics from rotating, which helps maintain bore sight accuracy and a minimally aberrated beam. Adjustment lock secures position. TECHSPEC Arcturus HeNe Beam Expanders are easily secured to both metric and English threaded mounts. Four tapped holes (two M6 on 25mm centers and two ¼-20 on 1″ centers) are located near the middle of the assembly for mounting. For more cost sensitive applications, Edmund Optics also offers TECHSPEC Scorpii Nd:YAG Beam Expanders . For applications where rotating optics are acceptable, the TECHSPEC Vega Laser Line Beam Expanders and TECHSPEC Vega Broadband Beam Expanders are available. For higher precision applications where sliding optics are necessary, please see our TECHSPEC Draconis Nd:YAG Laser Line Beam Expanders or TECHSPEC Draconis Broadband Beam Expanders . For broadband or ultrafast applications, TECHSPEC Canopus Reflective Beam Expanders are available. Specifications General Type: Beam Expander Style: Fixed Magnification Physical & Mechanical Properties Length (mm): 107.50 Weight (g): 409 Housing Diameter (mm): 50 Optical Properties Entrance Aperture (mm): 2 Exit Aperture (mm): 27 Expansion Power: 5X Focus Range (mm): 1.2m – ∞ Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Optical Glass Angle of Incidence (°): 0 Coating: BBAR (450-750nm) Design Wavelength DWL (nm): 633 Transmitted Wavefront, P-V: <λ/4 @ 633nm for Input Beam ≤1mm Wavelength Range (nm): 450 - 750 Coating Specification: R abs <0.4% @ 630 - 670nm R avg <0.6% @ 450 - 750nm Divergence Adjustment: Non-Rotating Optics Threading & Mounting Mounting Threads: C-Mount Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
