6 x 6 x 0.5mm, 800nm THG, Type I BBO Nonlinear Crystal

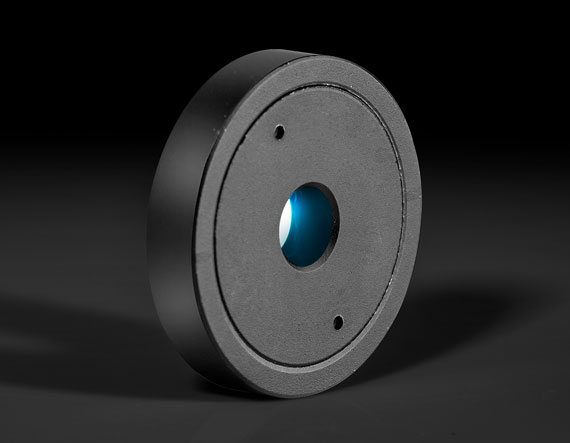

Product Details BBO Crystals for Frequency Conversion of 800nm and 1030nm Lasers LBO Crystals for Frequency Conversion of 1030nm and 1064nm Lasers High Damage Thresholds Up to 10 J/cm 2 @ 1064nm, 10ns, 10Hz Broad Transparency Range from the UV to the IR Nonlinear Crystals of either β-barium borate (BBO) or lithium triborate (LBO) are used for frequency conversion of laser sources. BBO crystals feature thicknesses from 0.2mm to 0.5mm to minimize group velocity mismatch and are ideal for frequency doubling or tripling of Ti:Sapphire and Yb:doped laser pulses. The critical and noncritical phase matching LBO crystals are ideal for second or third harmonic generation of Nd:YAG and Yb:doped lasers. Nonlinear Crystals with 20-10 surface quality and λ/10 (LBO) or λ/8 (BBO) surface flatness provide the broad transparency range and large nonlinear coefficient needed for the harmonic generation of fundamental laser frequencies. Each crystal features a protective anti-reflection (AR) coating that minimizes reflection and limits fogging from ambient conditions. Specifications General Type: Nonlinear Crystal Typical Applications: THG @ 800nm, Type I Note: Mount is 25.4mm Dia., 6mm Thick Unthreaded Black Anodized Metal Mount (see drawing for more information) Crystal Type: BBO Protective Chamfer: <0.1mm x 45° Physical & Mechanical Properties Dimensions (mm): 6.0 x 6.0 +0.0/-0.1 Thickness (mm): 0.50 +0.0/-0.1 Clear Aperture CA (mm): 5.70 Parallelism (arcsec): <20 Perpendicularity (arcmin): <5 Optical Properties Surface Quality: 20-10 Coating: AR Coating Design Wavelength DWL (nm): 800 Surface Flatness (P-V): λ/8 Coating Specification: S1: 400 - 800nm Broadband Protective Coating S2: 266nm Protective Coating Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 10 J/cm 2 @ 1064nm, 10ns, 10Hz Orientation Θ/Φ (°): 44.3/90 Threading & Mounting Mount: Mounted Mount Thickness (mm): 6 (unthreaded) Mount Diameter (mm): 25.4 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
