60° Full Fan Angle Laser Line Generator Lens

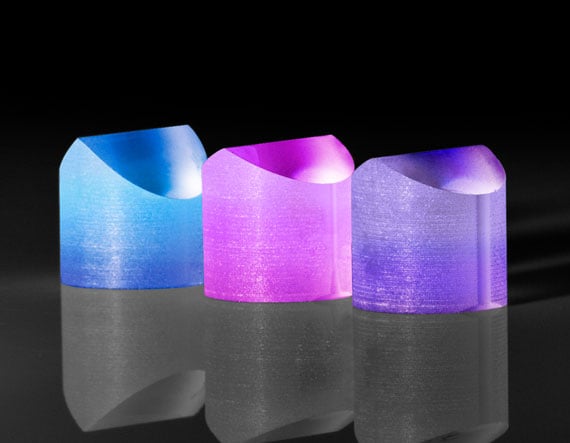

Product Details Ideal for Alignment and Machine Vision Applications Multiple Fan Angles Available Creates Uniform, Straight Line Powell Lenses, also known as Laser Line Generator Lenses, are optimized for a 0.8mm diameter laser beam input. The VIS-NIR coated lenses convert laser beams into uniform, straight lines. Unlike cylindrical lenses, which generate Gaussian beam profiles with hot-spot center points and fading edges, Powell Lenses provide an even distribution of energy along the length of the entire line. Powell Lenses are ideal for alignment and machine vision applications. These lenses are offered with multiple fan angles and come in an 8.90mm diameter size. Specifications General Type: Beam Shaping Lens Physical & Mechanical Properties Diameter (mm): 8.90 +0.00/-0.15 Height (mm): 8.90 +0.00/-2.00 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More N-SF6 Index of Refraction (n d ): 1.805 Coating: VIS-NIR (450-900nm) Coating Specification: BBAR @ 450 – 900nm Wavelength Range (nm): 450 – 900 Fan Angle (°): 60.00 Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
