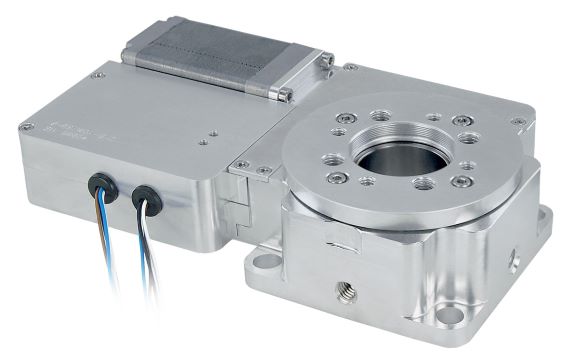

60mm High Vacuum (10 -6 Torr) Motorized Rotary Stage, Integrated Controller

Product Details High Resolution with 360° Continuous Rotation Integrated Motor and Controller Vacuum-Compatible Options Controlled Manually or via RS-232 Serial Interface Power Supply and Data Cable Sold as Separate Accessories Available with Integrated, 200 Counts per Revolution (CPR) Motor Mounted Encoder Zaber Motorized Rotary Stage Systems are designed with circular or square bases, providing precise 360° rotation. The version with the circular base can hold a 1″ or 25mm optic on both the top and bottom faces. The compact bearing design can handle up to 45 lb (20kg) loads while providing 4.1μrad resolution rotational movement. Encoder versions are available for all travel lengths, with 200 Counts per Revolution (CPR) rotary quadrature encoders integrated into the stepper motor. Zaber Motorized Rotary Stage Systems also includes a potentiometer located on the back of the stage to provide a convenient way to manually control position. Note: A 24-48 VDC universal power supply, data cables for daisy chaining, and computer interface cables (USB or RS-232) are sold separately as accessories. These stages utilize the same accessories as the Zaber High Precision Motorized Stage System . U.S. Tariff Pricing Notice: Pricing for certain products in this family may reflect recent changes in U.S. tariffs on Canadian-origin products. Prices shown include any applicable tariff-related adjustment; no additional tariff surcharge will be added at checkout. Specifications General Type: Metric Encoder: No Manual Control/ LED Indicators: No Manufacturer: Zaber Technologies Inc. Model Number: X-RSW60A-SV2T9 Note: Requires Accessory Kit, #75-301 , for operation. Type of Motor: 2-Phase Stepper Physical & Mechanical Properties Type of Movement: Rotary Stage Size (mm): 131.5 x 73.2 Travel (°): 360 Accuracy (°): 0.14 Backlash (°): <0.04 Center Hole: 23mm Clear Aperture to hold a 25mm (1") Dia. Optic (up to 3mm Thick) Height (mm): 31.7 Load Capacity (kg): 20 Load Capacity (N): 200 Repeatability (°): <0.02 Resolution (μrad): <0.349 Speed (°/s): 0.000143 - 100 Weight (kg): 0.72 Table Diameter (mm): 60 Max. Continuous Torque (N⋅cm): 100 Electrical Current (mA): 950 Maximum Operating Current (mA): 950 Hardware & Interface Connectivity Type of Drive: Stepping Motor Power Supply: 24-48 VDC; Power Supply w/US Plug found in accessories kit, #75-301 Computer Interface: RS-232, USB Material Properties Vacuum Compatibility: High vacuum (10 -6 Torr) Environmental & Durability Factors Operating Temperature (°C): 0 to +50 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
