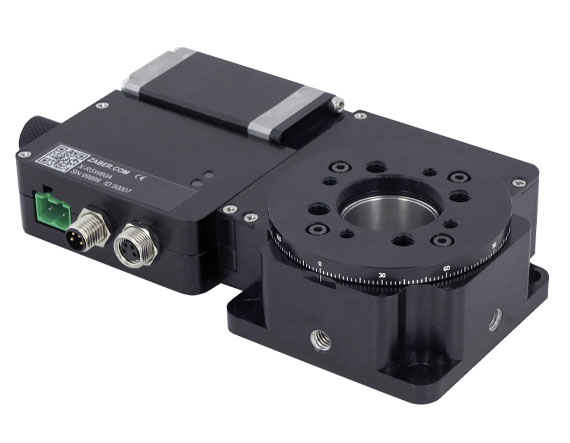

60mm Motorized Rotary Stage, Integrated Controller, Rotary Encoder

Product Details High Resolution with 360° Continuous Rotation Integrated Motor and Controller Vacuum-Compatible Options Controlled Manually or via RS-232 Serial Interface Power Supply and Data Cable Sold as Separate Accessories Available with Integrated, 200 Counts per Revolution (CPR) Motor Mounted Encoder Zaber Motorized Rotary Stage Systems are designed with circular or square bases, providing precise 360° rotation. The version with the circular base can hold a 1″ or 25mm optic on both the top and bottom faces. The compact bearing design can handle up to 45 lb (20kg) loads while providing 4.1μrad resolution rotational movement. Encoder versions are available for all travel lengths, with 200 Counts per Revolution (CPR) rotary quadrature encoders integrated into the stepper motor. Zaber Motorized Rotary Stage Systems also includes a potentiometer located on the back of the stage to provide a convenient way to manually control position. Note: A 24-48 VDC universal power supply, data cables for daisy chaining, and computer interface cables (USB or RS-232) are sold separately as accessories. These stages utilize the same accessories as the Zaber High Precision Motorized Stage System . U.S. Tariff Pricing Notice: Pricing for certain products in this family may reflect recent changes in U.S. tariffs on Canadian-origin products. Prices shown include any applicable tariff-related adjustment; no additional tariff surcharge will be added at checkout. Specifications General Type: Metric Encoder: Yes Model Number: X-RSW60A-E03 Note: Requires a 24-48 VDC power supply and either #15-295 for USB connectivity or #15-297 for RS-232 connectivity. A data cable ( #15-296 or #15-299 ) can be used to daisy chain multiple stages together to control simultaneously. Encoder Type: Rotary Quadrature Encoder Physical & Mechanical Properties Type of Movement: Rotary Stage Size (mm): 82.6 x 144.8 Travel (°): 360 Accuracy (°): 0.08, Unidirectional Backlash (°): <0.04 Center Hole: 23mm Clear Aperture to hold a 25mm (1") Dia. Optic (up to 3mm Thick) Load Capacity (kg): 20 Load Capacity (N): 200 Repeatability (°): <0.02 Resolution (μrad): 4.1 Speed (°/s): 0.0001 to 115 Weight (kg): 0.66 Table Diameter (mm): 60 Encoder Resolution: 200 CPR Max. Continuous Torque (N⋅cm): 225 Electrical Maximum Operating Current (mA): 950 Hardware & Interface Connectivity Type of Drive: Stepping Motor Power Supply: Not included, see the Accessories tab for recommended 24 to 48V Power Supply & Tech Info tab for connector information. Computer Interface: USB with #15-295 RS-232 with #15-297 Material Properties Vacuum Compatibility: N/A Environmental & Durability Factors Operating Temperature (°C): 0 - 50 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 253: Contains SVHC(s) ×
