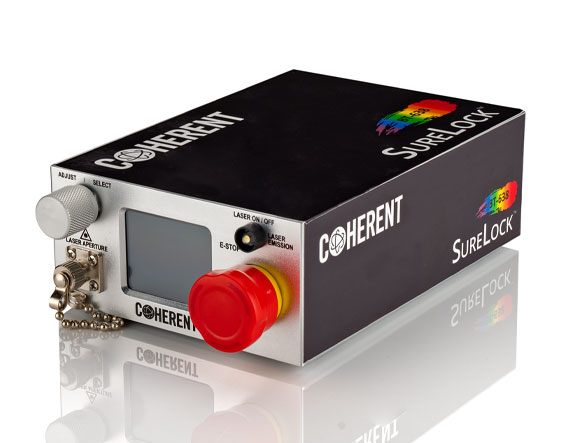

638nm SureLock Narrow Linewidth MM Fiber Coupled Laser

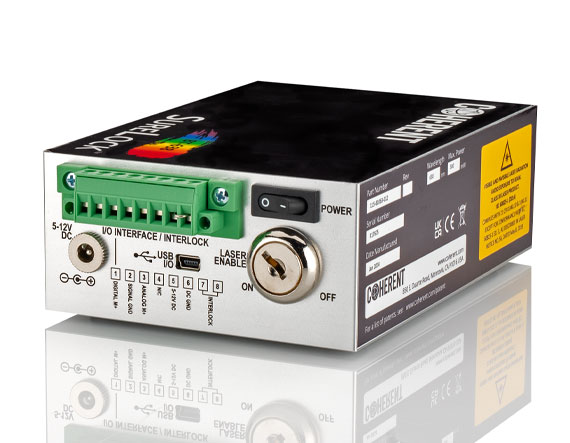

Product Details Narrow 0.07nm FWHM Spectral Linewidth Extreme Temperature Insensitivity Ultra-Compact, Easy-to-Use Turnkey Laser System Coherent Surelock Mini-Benchtop Laser Systems provide temperature stabilized, narrow 0.07nm FWHM spectral linewidth laser output with powers up to <500mW. Featuring integrated current and temperature control, these lasers provide better than 1% power stability, <1 minute warm-up time, and extreme temperature insensitivity for consistent performance over the locked region. A convenient LCD touchscreen display allows for easy setup, output power adjustment, and integration into new and existing lab and OEM systems. Coherent Surelock Mini-Benchtop Laser Systems are ideal for a range of precision applications including Raman Spectroscopy, Metrology, Bio-Instrumentation, Sensing, and Analytical Instrumentation. These lasers can be operated standalone or with a computer using the built in USB port which allows for a wide range of programming languages via serial commands. Specifications General Note: Recommended Fiber Patchcord: #23-706 Laser Class - CDRH: IIIb Physical & Mechanical Properties Dimensions (mm): 150 x 150 x 50 Weight (kg): 1.00 Optical Properties Numerical Aperture NA: 0.22 Spectral Line Width (nm): 0.07 Center Wavelength CWL (µm): 638.00 ±0.5 Electrical Output Power (mW): 300 Input Current (A): 1.00 Hardware & Interface Connectivity Connector: FC/PC Input Voltage (V): 90 - 240 (AC) Environmental & Durability Factors Operating Temperature (°C): +10 to +35 Storage Temperature (°C): -10 to +60 Regulatory Compliance Certificate of Conformance: View ×
