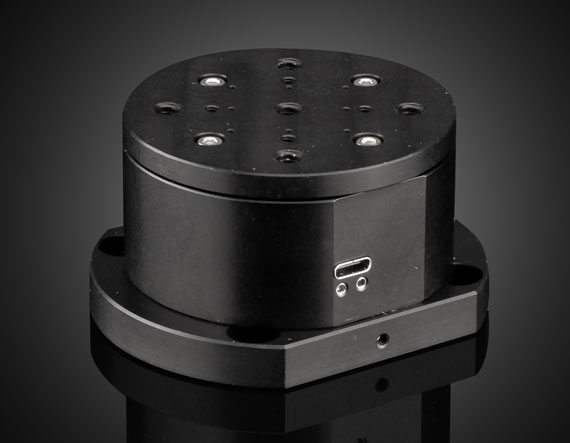

70mm, Compact Motorized Rotation Stage, Metric

Product Details Specifications General Type: Metric Note: Controller Required: #23-931 Type of Motor: Stepper Motor Physical & Mechanical Properties Type of Movement: Rotary Guide System: Ball Bearing Travel (°): 360 Accuracy (°): 0.03 Backlash (°): 0.2 Construction: Aluminum, 3D Printed Plastic Height (mm): 44.7 Load Capacity (kg): 0.5 Repeatability (°): 0.03 Speed (°/s): 240 Weight (kg): 0.25 Table Diameter (mm): 70 Parallelism (°): 0.0083 Min. Incremental Movement (°): 0.02 Optical Properties Resolution (μm): 0.02° Electrical Maximum Operating Current (mA): 500 Hardware & Interface Connectivity Type of Drive: Gear Transmission Computer Interface: USB-C Threading & Mounting Mounting Threads: (4) M6 x 1.0, (4) M3 x 0.5, (8) M2 x 0.4 Environmental & Durability Factors Operating Temperature (°C): 10-40 Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
