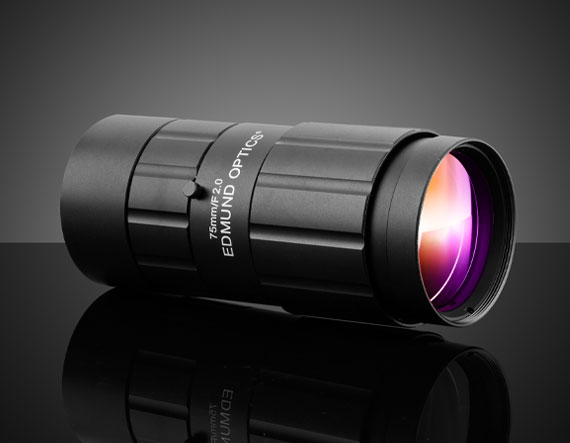

75mm C Series Fixed Focal Length SWIR Lens

Product Details Up to 2/3″, C-Mount Lens Up to 7.5 MegaPixels, 2.8µm Pixel Size Sensors Compact (C) SWIR Lens for 900-1700nm Wavelength Range 3.5mm to 100mm Focal Length TECHSPEC C Series Fixed Focal Length SWIR Lenses are compact, lightweight lenses designed as a low-cost alternative to the T ECHSPEC SWIR Series Fixed Focal Length Lenses . These lenses feature large maximum apertures, broadband AR coatings optimized for a 900 – 1700nm wavelength range, and with the working distances and resolution requirements of factory automation and inspection in mind. For optimum resolution and performance at the application’s target spectral range, SWIR Machine Vision filters and SWIR LED illumination are recommended. TECHSPEC C Series Fixed Focal Length SWIR Lenses are manufactured to a high tolerance, resulting in greater levels of imaging performance and low lens-to-lens variation, assuring simple installation into multiple systems. Also available with optimized performance in the VIS or VIS-NIR spectral ranges, C-Series lenses are ideal for a wide variety of machine vision, factory automation, and autonomous applications. Specifications General Product Family: C SWIR Series Type: Fixed Focal Length Lens Imaging Lens Type: Compact Lens Coated for Visible to Near Infared Physical & Mechanical Properties Iris Option: Variable Length (mm): 98.76 Maximum Diameter (mm): 48.0 Outer Diameter (mm): 48.0 Weight (g): 362 Maximum Rear Protrusion (mm): 7.24 Optical Properties Horizontal Field of View @ Max Sensor Format: 5.76° Field of View at Max Sensor Format: Horizontal: 5.76° Vertical: 4.32° Diagonal: 7.19° Horizontal Field of View, 2/3″ Sensor: 5.76° Horizontal Field of View, 1/1.8″ Sensor: 4.71° Horizontal Field of View, 1/2″ Sensor: 4.19° Horizontal Field of View, 1/2.5″ Sensor: 3.77° Horizontal Field of View, 1/3″ Sensor: 3.14° Maximum Image Circle (mm): 11.00 Numerical Aperture NA, Object Side: 0.05111 Number of Elements (Groups): 7 (6) Focal Length FL (mm): 75.00 Working Distance (mm): 500 – ∞ Aperture (f/#): f/2.0 – f/16.0 Coating: 900 – 1700nm BBAR Coating Specification: 900 – 1700nm BBAR Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 63.265 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -15.01 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -64.79 Maximum Distortion (%): 0.068 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -31.983 Lens Wavelength Range: SWIR Wavelength: SWIR Sensor Maximum Sensor Format: 2/3″ Threading & Mounting Filter Thread: M43 x 0.75 (Female) Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 For questions regarding operating temperature please contact our support team Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 253: Compliant ×
