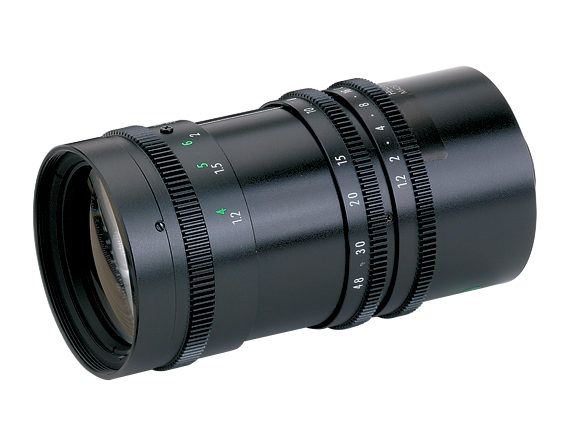

(8-48mm FL), 6X Manual Zoom Video Lens

Product Details Manual Zoom, Focus and Iris Control Features Locking Set Screws C-Mount Manual Zoom Imaging Lenses provide manual adjustment of focal length (zoom), iris, and focus. Zoom lenses cover the focal length range of several fixed focal length lenses in one lens. Manual Zoom Imaging Lenses should be used when a variable angle field of view is required. Ideal applications include inspection, machine vision, and robotics. Specifications General Type: Macro Zoom Lens Physical & Mechanical Properties Length (mm): 97.00 Maximum Diameter (mm): 51.00 Weight (g): 305.00 Optical Properties Field of View @ Min Working Distance (mm): 984 – 168 Horizontal Field of View, 1/2″ Sensor: 44.6° – 8.0° Zoom Ratio: 6:1 Focal Length Range (mm): 8-48 Working Distance (mm): 1,200 – ∞ Aperture (f/#): f/1.2 – f/16 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 1/2″ Threading & Mounting Filter Thread: M49.0 x 0.75 Mount: C-Mount Regulatory Compliance RoHS 2015: Exempt × Reach 224: Contains SVHC(s) × Certificate of Conformance: View ×
