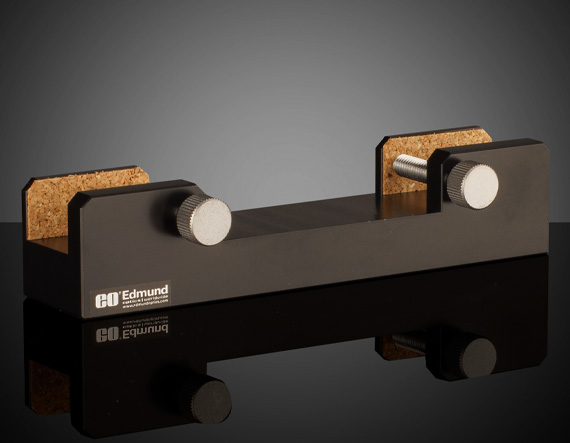

80mm Sq., Fixed Filter Holder

Product Details Non-Marring Surface 3 Sizes Available M6 x 1.0 mounting hole Black Anodized Aluminum Posts and Post Holders Required for Mounting Fixed Filter Mounts are ideal for a variety of filter sizes, as well as for mirrors, beamsplitters, etc. The low-profile design ensures limited obstruction of the aperture. The mounts feature a non-marring surface with a M6 x 1.0 mounting hole. Fixed Filter Mounts are constructed of black anodized aluminum and are available in 3 sizes: 15mm Sq., 40mm Sq., and 80mm Sq. Posts and Post Holders are required for mounting to a breadboard. Specifications General Type: Fixed Type of Optics: Square or Rectangular Physical & Mechanical Properties Construction: Black Anodized Aluminum Max. Thickness of Compatible Optics (mm): 18.0 Base Width (mm): 140.0 Base Thickness (mm): 30.0 Threading & Mounting Size of Compatible Optics (mm): 80.0 – 152.4 Compatible Post: M6 x 1.0 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 247: Contains SVHC(s) ×
