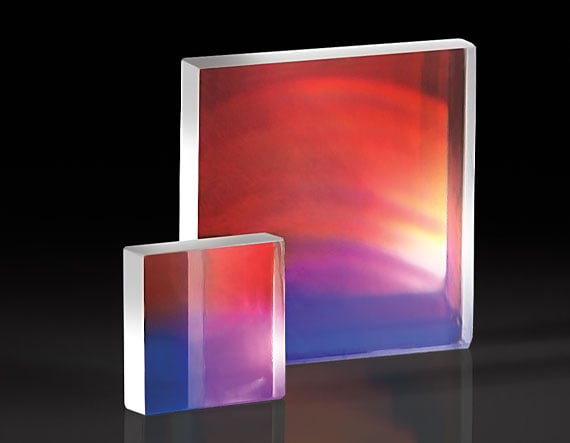

830 Grooves/mm, 50mm Sq, UV Transmission Grating Beamsplitter

Product Details Multiple Diffraction Angles Available UV Grade Fused Silica Substrate Ideal for Fixed Grating Applications Ideal for spectrographs and other compact systems using small detector arrays, UV Transmission Gratings are a simplistic means of dispersing light for fixed grating applications in the 250 – 450nm wavelength range. As incident light strikes the UV Transmission Gratings’ coarse groove spacing, it is dispersed on the opposite side of the grating at a fixed angle. As groove spacing increases, the diffraction angle decreases. UV Transmission Gratings are relatively polarization insensitive and are fairly insensitive to alignment errors. Handling Gratings: Gratings require special handling, making them prone to fingerprints and aerosols. Gratings should only be handled by the edges. Before attempting to clean a grating, please contact us. Specifications General Type: Transmission Diffraction Grating Physical & Mechanical Properties Dimensions (mm): 50.00 x 50.00 Clear Aperture (%): 90 Construction: Blazed Grating Length (mm): 50.00 Thickness (mm): 2.00 ±0.5 Width (mm): 50.00 Alignment of Grooves to Edge (°): ±0.5 Optical Properties Groove Density (grooves/mm): 830 Wavelength Range (nm): 250 – 450 Blaze Angle (°): 19.4 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
