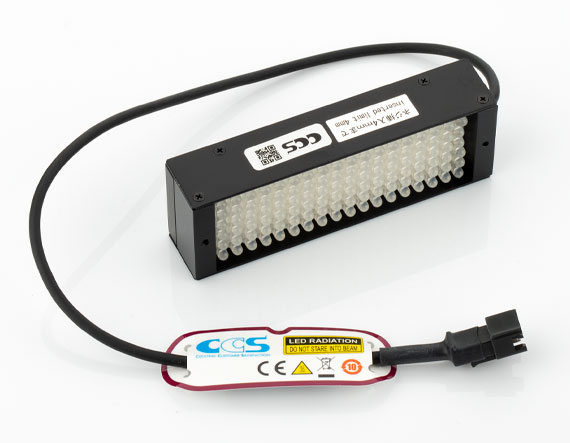

86 x 28.8mm LED IR Bar Light 940nm

Product Details 850 or 940nm Wavelength Options Compact Lightweight Housing Single and 4-Bar Configurations Available CCS Infrared (IR) Bar Lights provide uniform infrared illumination along a localized area. Designed with a compact lightweight housing, these bar lights can be easily integrated into applications with a limited working area. CCS Infrared (IR) Bar Lights are ideal for a variety of testing and inspection applications in industrial and manufacturing environments such as foreign material detection, color reduction in monochromatic images, and character isolation for optical character recognition (OCR). These bar lights are available as a single bar light or as a 4-bar square configuration with both options featuring adjustable output angles. Compared to visible light, infrared light provides a lower scattering rate and a higher transmittance rate, allowing for fewer surface reflections and deeper penetration into materials for imaging. Specifications General Model Number: LDL-74X27IR2-940 Type of Illumination: LED Illuminator Manufacturer: CCS Geometry: Bar Light Illumination Mode: Constant Physical & Mechanical Properties Dimensions (mm): W 86 mm x D 28.8 mm x H 18 mm Weight (g): 80 Active Area (mm): 74 x 27.2 Optical Properties Color: IR Wavelength (nm): 940 Electrical Power Consumption (W): 6.9 Hardware & Interface Connectivity Input Voltage (V): 24 Power Supply: Power Supply Required and Sold Separately: USA: #73-491 Europe: #73-491 Japan: #89-513 Korea: #33-773 China: #73-491 Regulatory Compliance RoHS 2015: Exempt × Reach 224: Contains SVHC(s) × Certificate of Conformance: View ×
