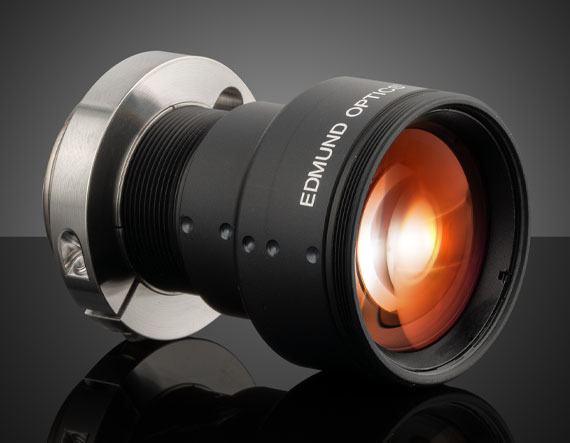

8mm, f/2.8 UCr Series Fixed Focal Length Lens

Product Details Ruggedized Designs of our UC Series Lens 1/1.8″, C-Mount Lens with 50g Shock Resistance Up to 12 MegaPixels, 1.85µm Pixel Size Sensors TECHSPEC UCr Series Fixed Focal Length Lenses utilize the same optics as the TECHSPEC UC Series Lenses while providing stabilized ruggedization to protect the lens from damage while maintaining optical pointing and positioning after shock and vibration. All individual lens elements are glued in place to reduce pixel shift on the sensor, ensuring the object-to-image mapping is maintained after heavy shock and vibration. These lenses provide high performance at an affordable cost in a compact form without sacrificing quality or feel. TECHSPEC UCr Series Fixed Focal Length Lenses are designed for pixels that are ≤1.85μm, these lenses provide high levels of resolution (>200 lp/mm) across the sensor and are compatible with all standard C-Mount cameras. Edmund Optics has created a family of high-performance ultra-compact optical designs (the UC Series family) and developed 3 customized optomechanical solutions targeted for specific applications. These lens sub-families utilize the same optics as the UC Series lenses providing the same optical performance in a variety of optomechanical solutions to meet your application requirements: UC Series : Features locking cam focus and iris adjustment in an ultra-compact design and is the most adjustable version of these optical designs; they are the typical high-quality machine vision lenses. UCi Series : Simplified mechanics featuring fixed apertures with compact housing. Industrial Ruggedization for reduced size, cost, and locked focus. UCr Series : All optics glued in place and a locking C-clamp focus ring. Stabilized Ruggedization for reduced pixel shift and improved focus stability. UCw Series : Waterproof, designed to meet IEC Ingress Protection Code IPX7 to withstand exposure to water up to 1 meter depth for 30 minutes. Specifications General Product Family: UCr Series Imaging Lens Type: Ruggedized High Performance Lens with Compact Form Factor Physical & Mechanical Properties Iris Option: Fixed Length (mm): 50.90 Maximum Diameter (mm): 34.10 Outer Diameter (mm): 34.10 Maximum Length (mm): 50.90 Optical Properties Horizontal Field of View @ Max Sensor Format: 59.1mm – 44.7° Field of View at Max Sensor Format: Horizontal: 59.1mm – 44.7°, Vertical: 43.4mm – 33.9°, Diagonal: 76mm – 55° Horizontal Field of View, 1/1.8″ Sensor: NA Horizontal Field of View, 1/2″ Sensor: 59.1mm – 44.7° Horizontal Field of View, 1/2.5″ Sensor: 53.1mm – 40.7° Horizontal Field of View, 1/3″ Sensor: 43.4mm – 33.9° Horizontal Field of View, 1/4″ Sensor: 32.2mm – 25.6° Maximum Image Circle (mm): 8.00 Numerical Aperture NA, Object Side: 0.0306 Number of Elements (Groups): 9 (8) Wavelength Range (nm): 380 – 700 Wavelength Range (μm): VIS Focal Length FL (mm): 8.00 Working Distance (mm): 50 – ∞ Aperture (f/#): f/2.8 Coating Specification: λ/4 MgF 2 Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 22.07 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 27.98 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 1.77 Maximum Distortion (%): -3.92 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -20.88 Wavelength: VIS Sensor Optimized Sensor Format: 1/2.5″ Maximum Sensor Format: 1/2″ Pixel Size (μm): 1.85 Threading & Mounting Filter Thread: M43 x 0.75 ( Female ) with adaptor #89-940 Front Thread: M34 x 0.5 (Male) Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Type of Ruggedization: Stabilized (Robust Mechanics for Shock and Vibration) Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 253: Compliant ×
