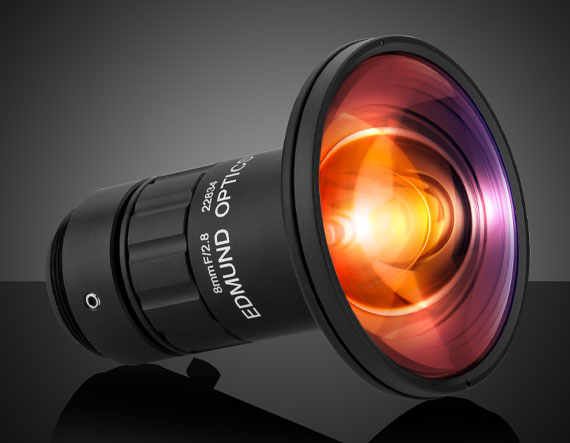

8mm Focal Length, UAV Series Fixed Focal Length Lens

Product Details Compact, Infinite Conjugate Lens Ideal for Photogrammetry 8mm, 12mm, 16mm, 25mm, and 35mm Focal Lengths 1.2″, C-Mount Lens Up to 24.4 MegaPixels, 2.7µm Pixel Size Sensors TECHSPEC UAV Series Fixed Focal Length Lenses are compact, lightweight infinite conjugate lenses designed for the 4th Generation Sony Pregius 1.2” IMX530 and IMX540 sensors for mounting on autonomous vehicles and drones. These lenses are designed with a low Ground Separation Distance (GSD) to enable accurate survey results, and are available in 8mm, 12mm, 16mm, 25mm, and 35mm focal length options. The f/2.8 aperture provide increased light throughput and high-resolution performance. TECHSPEC UAV Series Fixed Focal Length Lenses are C-Mount and feature a locking focus and iris rings to prevent unwanted adjustments, as well as a front filter thread for integrating standard optical filters . These lenses are ideal for Drone Mapping and Surveying, Aerial Imaging, and Photogrammetry applications. Note: Call for OEM Quantity and Pricing Specifications General Product Family: UAV Series Type: Fixed Focal Length Lens Imaging Lens Type: Infinite Conjugate Physical & Mechanical Properties Iris Option: Variable Length (mm): 73.67 Maximum Diameter (mm): 55.00 Outer Diameter (mm): 55.00 Weight (g): 175 Maximum Rear Protrusion (mm): 7.17 Maximum Length (mm): 66.68 Minimum Length (mm): 66.50 Optical Properties Horizontal Field of View @ Max Sensor Format: 85.8° Horizontal Field of View, 1.2″ Sensor: 85.8° Horizontal Field of View, 1.1″ Sensor: 81.0° Horizontal Field of View, 1″ Sensor: 75.2° Horizontal Field of View, 2/3″ Sensor: 55.8° Horizontal Field of View, 1/1.8″ Sensor: 46.8° Maximum Image Circle (mm): 19.30 Numerical Aperture NA, Object Side: 0.000285 Number of Elements (Groups): 12 (9) Wavelength Range (nm): 425 – 675 Focal Length FL (mm): 8.00 Working Distance (mm): 500 – ∞ FOV @ Max Sensor Format, H x V (mm): Horizontal: 85.8° Vertical: 74.0° Diagonal: 113.4° Aperture (f/#): 2.8 – 16 Coating: 425 – 675 BBAR Coating Specification: 425 – 675 BBAR Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 21.362 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 28.07 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -8.41 Maximum Distortion (%): 6.7 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -43.257 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 1.2″ Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: N/a Front Thread: N/a Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 For questions regarding operating temperature please contact our support team Regulatory Compliance Certificate of Conformance: View ×
