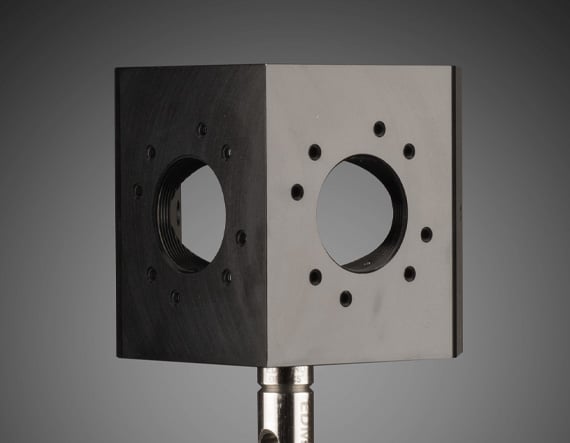

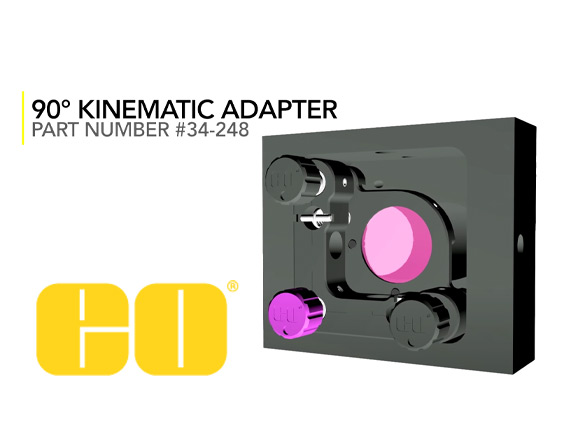

90° Kinematic Adapter

Product Details C-Mount and Cage System Compatible M6 Mounting Hole Compatible with Most TECHSPEC Kinematic Mounts The TECHSPEC 90° Kinematic Adapter is designed to provide a stable and precise mounting solution for kinematic mounts during laser alignment. This adapter offers thick walls and sturdy mounting, resulting in a naturally damped housing. Our TECHSPEC 90° Kinematic Adapter is designed for use with TECHSPEC Kinematic Optical Mounts , which are required for operation. Kinematic Optical Mounts offer lockable adjustment screws for long term stability. Through combining the Kinematic Adapter, a Kinematic Optical Mount, and TECHSPEC Laser Mirrors , reliable integration into laser machining, cinema, or life science applications is obtainable. Specifications General Function: Angle Adjustment Note: 25.0/25.4mm TECHSPEC Kinematic Mount required Physical & Mechanical Properties Length (mm): 62.40 Height (mm): 65.0 Width (mm): 76.40 Construction: Black Anodized Aluminum Bolt Circle Diameter for M3 Tapped (mm): 38.0 Threading & Mounting Compatible Post: M6 x 1.0 Thread Type: C-Mount Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
