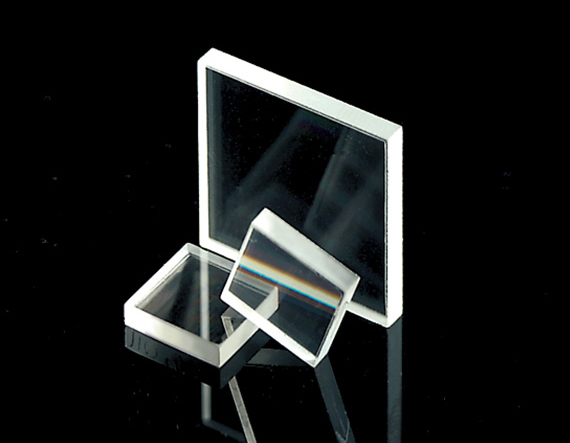

92 Grooves/mm, 25mm Sq, Transmission Grating Beamsplitter

Product Details Ideal for Laser Beam Division Designed for 0 Degree AOI Low Groove Density for Maximized Beam Separation Transmission Grating Beamsplitters are commonly used for laser beam division and multiple laser line separation in visible wavelengths. The transmitted beam is diffracted into multiple orders. Edmund Optics’ transmission grating beamsplitters consist of an index-matched epoxy replica on a polished glass substrate for a high total efficiency. Transmission Grating Beamsplitters are available in several gratings, offering different dispersion and power distributions. The diffraction angle for any wavelength may be calculated using the grating equation for normal incident light. Handling Gratings: Gratings require special handling, making them prone to fingerprints and aerosols. Gratings should only be handled by the edges. Before attempting to clean a grating, please contact us. Specifications General Type: Transmission Diffraction Grating Physical & Mechanical Properties Dimensions (mm): 25.0 x 25.0 ±0.5 Clear Aperture (%): 90 Construction: Blazed Grating Length (mm): 25.00 Thickness (mm): 3.00 ±0.5 Width (mm): 25.00 Optical Properties Groove Density (grooves/mm): 92 Design Wavelength DWL (nm): 632.8 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More B270 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
