940nm, 4mW, 1000mA, SMA Connector, Fiber-Coupled LED

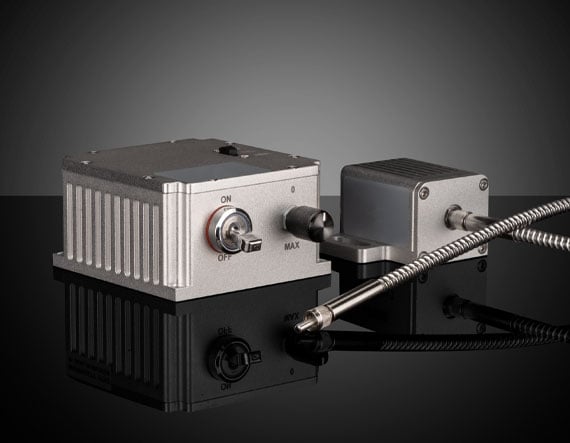

Product Details Center Wavelengths from 340 – 1200nm Integrated Heat Sink for Thermal Management Continuous, TTL, or Analog Modulation Operation Fiber Coupled LEDs are available in a broad selection of nominal wavelengths covering the UV, visible, and NIR spectra. Each fiber coupled LED consists of a single LED mounted to a heat sink housing with a SMA connector and slotted holes, enabling easy mounting to optical benchtops. Each stock number includes a 1 meter long, 0.22NA, ø600µm SMA Cable which can be collimated using our Lightpath Fiber Optic Collimators . The included driver allows for continuous or modulated (TTL and analog) operation of the LED and has a physical knob for output intensity adjustment. Fiber Coupled LEDs are ideal for use in microscopy, life science, or general lab applications where they can serve as alternatives to low power lasers. Note: A 5V DC Power Supply, sold separately, is required for operation. See the accessories tab for the recommended power supply for your region. Specifications General Operating Lifetime (hours): ~10,000 Contents of Kit: 1 x Mounted LED 1 x LED Driver 1 x SMA Cable for Modulation 1 x ø600µm, 1m Length, 0.22NA, MM Patchcord Note: 5V DC Power Supply sold separately Optical Properties Color: Infrared Wavelength (nm): 940 (Nominal) Bandwidth (nm): 37 (FWHM) Electrical Current (mA): 1000 (maximum) Output Power (mW): 4 (typical, with ø600µm Core Fiber) Forward Voltage (V) : 2.75 Hardware & Interface Connectivity Connector: SMA Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 233: Compliant ×
