Adjustable Grating Mount Adapter for <20mm Optic

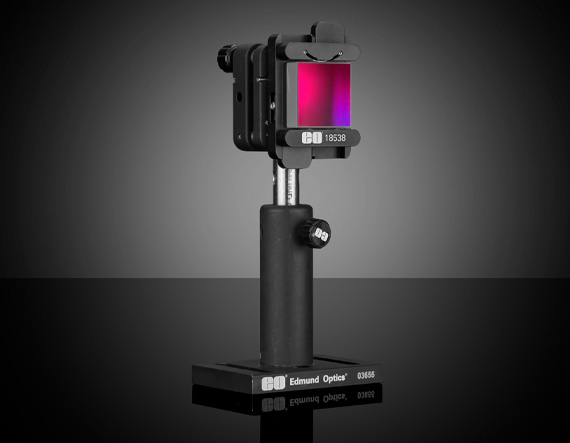

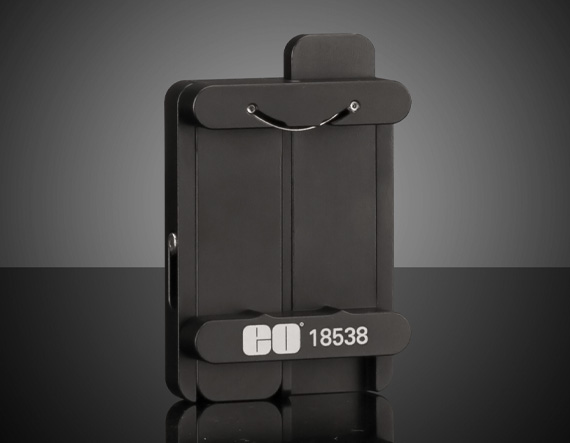

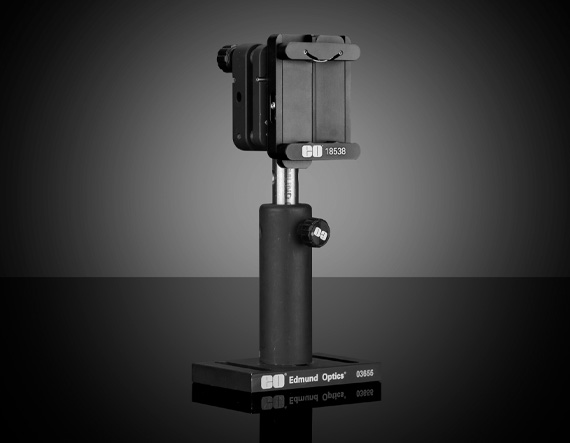

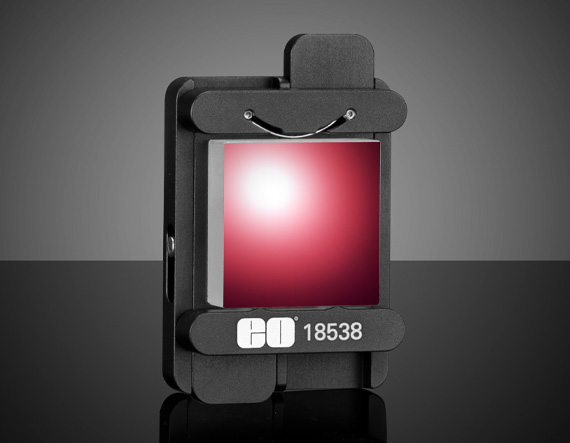

Product Details Mount up to 60mm Tall Diffraction Gratings Easy Adjustment via Side Locking Screws Designed for Integration into 25.4mm Diameter Optic Mounts Adjustable Grating Mounts are designed to hold diffraction gratings without damaging their sensitive grating surface. Featuring a 3-point mounting style with spring and metal contacts, these mounts provide adequate clamping pressure while allowing for easy adjustment via side locking screws. A 25.4mm diameter extension on the rear of the mount allows for integration into TECHSPEC Kinematic Mounts , E-Series Circular Kinematic Mounts , and fixed mirror mounts . Adjustable Grating Mounts can be adjusted to accommodate a range of grating sizes, up to 60mm in height. Specifications General Type: Fixed Type of Optics: Square or Rectangular Note: Includes Hex Wrench for Locking Screws Compatible Kinematic Mount: #15-866 , #58-851 , #58-854 Threading & Mounting Size of Compatible Optics (mm): 0.00 – 20.00 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
