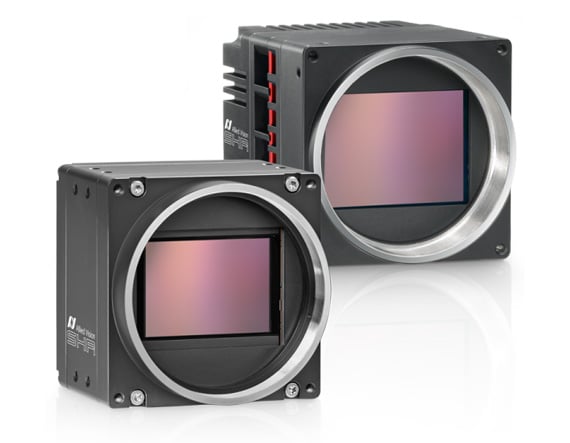

Allied Vision SHR Series SHR411MXGE-P, 4.2″ 151MP M72 Mount, 10GigE PoE+ Monochrome Camera

Product Details High Resolution (up to 151MP) and High Speed without Compromising Quality Large Sensors with up to 1.1 GB/s of Data Rate Excellent Thermal Management for Industrial Applications Allied Vision SHR Power Over Ethernet (PoE+) 10GigE Cameras deliver high-resolution imaging utilizing a robust 10GigE Vision interface. This enables reliable, high-bandwidth transfer of uncompressed image data over standard Ethernet infrastructure while maintaining low latency and flexible system integration. Advanced CMOS sensors, high dynamic range, and low-noise performance ensure exceptional image quality, while integrated features such as programmable I/O, sequencers, and onboard processing enhance system control and efficiency. Allied Vision SHR Power Over Ethernet (PoE+) 10GigE Cameras are designed with industrial-grade housings and optimized thermal management to ensure stable operation in non-lab environments where temperature is a concern. These cameras are ideal for applications including semiconductor and electronics inspection, flat panel display inspection, precision metrology, and scientific imaging. Specifications Spectrum: Monochrome General Type: Monochrome Camera Model Number: SHR411MXGE-P Manufacturer: Allied Vision Camera Series: SHR 10GigE Physical & Mechanical Properties Dimensions (mm): 83 x 80 x 80 (excludes connectors and lens mount) Weight (g): 580 Housing: Full Sensor Image Buffer: 512MB Sensor Format: 4.2″ Resolution (Megapixels): 151.00 Frame Rate (fps): 6.20 Pixels (H x V): 14,192 x 10,640 Pixel Size, H x V (μm): 3.67 x 3.67 Sensing Area, H x V (mm): 53.36 x 40.01 Imaging Sensor: Sony IMX411ALR Type of Sensor: Progressive Scan CMOS Shutter Type: Rolling Pixel Depth: 8/12/16 bit Exposure Time: 60μs to 60s Dynamic Range (dB): 78.0 Electrical Power Consumption (W): 19 Hardware & Interface Connectivity Interface: 10GigE Connector: 10GigE, RJ45 with Screw Locks Power Supply: 10 to 25VDC, via 12-pin Connector GPIOs: 1 opto-isolated input, 1 RS232 Input, 1 RS232 Output, 2 – 24V Input, 4 Open Drain Output Synchronization: Hardware Trigger (GPIO) or Software Trigger Interface Port Orientation: Back Panel GPIO Connector Type: 12-pin Hirose Threading & Mounting Mount: M72 x 0.75 Mounting Threads: 4 x M4-6H (Front and Sides), ¼”-20 Tripod Mount Environmental & Durability Factors Operating Temperature (°C): -10 to +60 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × REACH 241: Compliant ×
