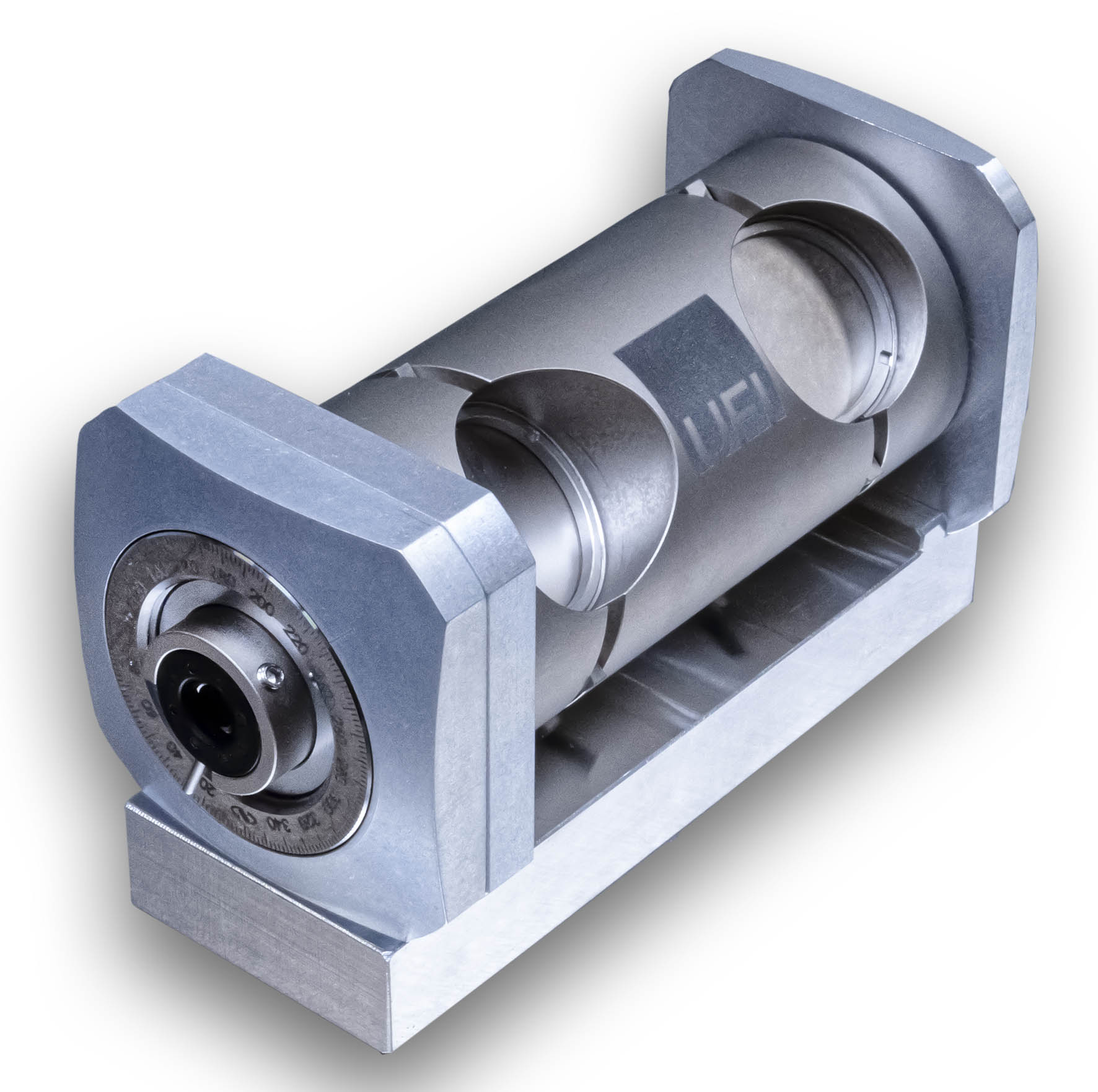

AURORA 40-85eV (15 – 31nm) XUV Phase Retarder

Product Details Near Circular Polarization of Extreme UV (XUV) Light without Adding Dispersion Up to 40% Max Transmission Spectral Range Options of 40 – 85 eV (15 – 31nm) or 10 – 35 eV (31 – 124nm) UltraFast Innovations (UFI) Aurora XUV Phase Retarders are designed to act as a quarter waveplate to turn linearly polarized XUV light into circularly polarized light without introducing additional dispersion. These phase retarders achieve close to-circular polarization of PC = 0.75 and feature a > 25% transmission around 66 eV photon energy, at the Ni M2/M3 edge. Broad bandwidth options of 40 – 85eV (15 – 31nm) or 10 – 35eV (31 – 124nm) are available and a clear aperture of 3mm will allow the low divergent XUV light to pass through without clipping. UltraFast Innovations (UFI) Aurora XUV Phase Retarders use a transmission optimized, four mirror-grazing incidence reflection geometry that induces a quarter wave phase offset between the s- and p-polarization components of a linearly polarized input XUV beam. These retarders are ideal for XUV ultrafast high-harmonic, laser-based pump probe, and attosecond applications. Note: Please contact Edmund Optics after placing your order (or prior to ordering) to provide: Required cable length between AURORA and the vacuum flange (include units) Country of operation / end-use country (required to supply the correct cable type) Specifications Ellipticity (Pc 1 ): 0.85 @ 23.4nm (Fe) 0.75 @ 18.79 (Ni) General Note: Included with the Unit 9-pin D-Sub connector DN40CF window for vacuum chamber integration Physical & Mechanical Properties Dimensions (mm): 51 x 118 Clear Aperture CA (mm): 3 Optical Properties Transmission (%): >25 Wavelength Range (nm): 14.58 – 30.99 Extra Beam Path (mm): 3 Electrical Bandwidth (eV): 40 – 85 Regulatory Compliance Certificate of Conformance: View ×
