Automated Upright Microscope EO

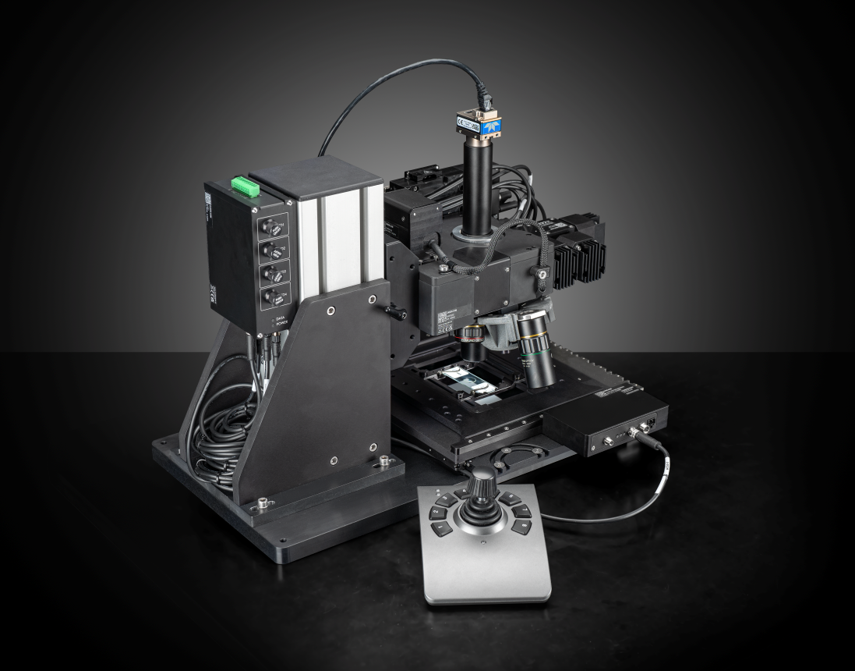

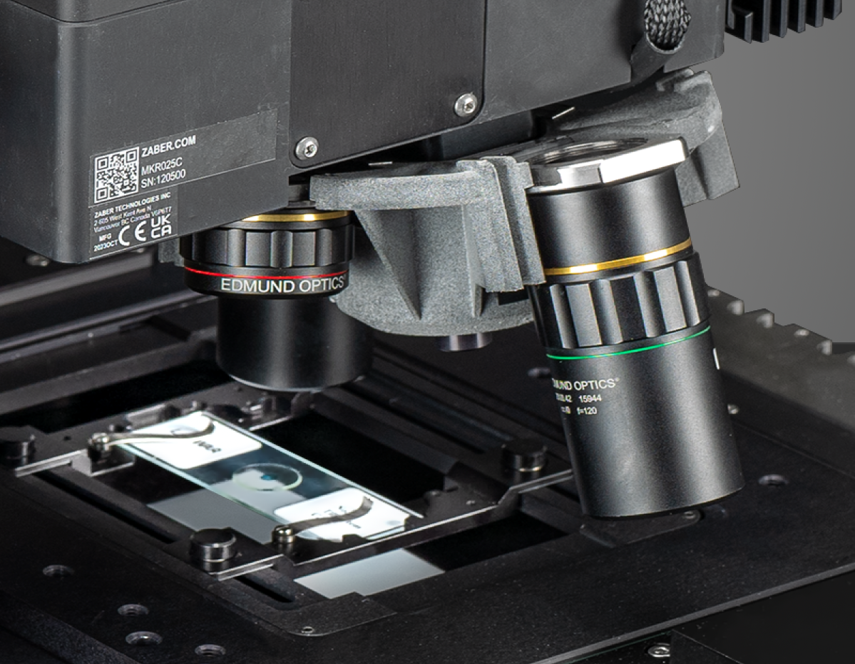

Product Details Compatible with the Zaber Motion Library and μManager Open-Source Microscopy Software Supports Olympus , Nikon , Zeiss or Edmund Optics TECHSPEC 120i Objectives Motorized XY Travel and Z-focus Movement Ideal for Epifluorescence and Brightfield Microscopy Applications Automated Upright Microscopes are fully compatible with the Zaber Motion Library and μManager Open-Source Microscopy Software to completely automate the imaging experience. These microscopes combine Zaber’s motorized XY travel and Z-focus movement control with industry leading Olympus , Nikon CFI60 , Zeiss , or Edmund Optics TECHSPEC 120i Objectives . A 100 x 120mm travel XY stage, motorized objective and filter cube turrets, and a programmable 3-axis joystick are included with the microscope body to assemble a complete microscope system. Automated Upright Microscopes require stage inserts, sold separately, ( Well Plate , Breadboard , or Slide Holder ) for precise and secure mounting of samples. Epi-illuminators are available, sold separately, to provide high intensity light with 3 LED lamp channels: 385, 473, and 568nm , or 385, 625nm, and White . Note: All necessary mounting hardware and cabling are included with each microscope configuration. Stage inserts and illumination accessories are sold separately and required for operation. Power supply required and sold separately. Please accept marketing-cookies to watch this video. These Automated Upright Microscopes combine Zaber ’s robust motion control ecosystem with industry-leading objective optics. The microscopes consist of a 100 x 120 mm travel XY stage, motorized objective turret and Z-focus movement, a 3-channel light illuminator, and a programmable 3-axis joystick. Each microscope is fully compatible with μManager Open-Source Microscopy Software and Zaber’s extensive Motion Library to completely automate the imaging experience. This microscopy system is inherently modular, and with all motorized components daisy-chain compatible with Zaber’s complete motion product line-up. This ensures that the system is flexible and future proof, as software and hardware updates can continue to meet your demanding applications far beyond a project lifecycle. Each Automated Upright Microscope is compatible with either Edmund Optics TECHSPEC 120i, Nikon CFI60, or Olympus objectives. Users can select their ideal objective manufacturer, and the microscope will be delivered preconfigured for compatibility with those optics. Find all of our compatible objectives here . You can find our extensive range of compatible cameras here as well as our list of recommended cameras below. Edmund Optics is your trusted source for microscope objectives and microscopy optics. Reach out to our 24/7 engineering support to help you find the right products for your microscopy system. Specifications General Compatible Tube Lens Focal Length (mm): 120 mm Compatible Objectives: TECHSPEC 120i Plan APO Infinity Corrected Objectives Filter Cube Turret: Holds up to 6 “Push & Click” Filter Cubes Note: See Accessories for Compatible Illuminators and Stage Inserts Physical & Mechanical Properties Dimensions (mm): 440 x 360 Travel (mm): 100 x 120 Focus Travel (mm): 25 Optical Properties Parfocal Length (mm): 81.5 (Parfocal Adapters Required, See Accessories) Resolution (μm): 0.15625 Sensor Maximum Sensor Format: 1.1″ Hardware & Interface Connectivity Connector: Locking 4-pin M8 (cables included) Power Supply: Power Supply Required and Sold Separately: USA: #70-962 Threading & Mounting Mounting Threads: C-Mount Objective Thread: C-Mount Regulatory Compliance Certificate of Conformance: View ×
