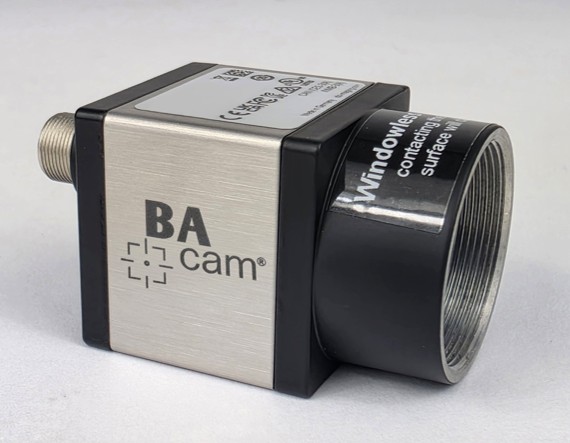

BA-CAM – Beam Analyzer CAMera Single Spot Beam Profiler

Product Details Analysis of Beam Profile, Centroid, Ellipticity, Clip Levels, Flatness Factor, Plateau Uniformity Supports CW and Pulsed Laser Sources Ideal for Laser System Diagnostics and Process Optimization Compliant with ISO 13694 Spatial Beam Metrics Haas Laser Technologies BA-CAM Beam Analyzer Cameras deliver precise, measurement and monitoring of continuous wave (CW) and pulsed laser sources. Designed in accordance with ISO 13694 standards for laser and laser-related equipment, the BA-CAM provides accurate spatial beam characterization to ensure optimal laser system performance. Offering detailed analysis of beam profile, circularity, centroid location, ellipticity, clip levels, flatness factor, and plateau uniformity, this analyzer enables early detection of alignment issues or system degradation. Haas Laser Technologies BA-CAM Beam Analyzer Cameras are designed without moving components, ensuring high reliability and providing instantaneous feedback on the laser beam and related optical elements. Specifications General Model Number: BA-CAM-200-1200-I12-EO Physical & Mechanical Properties Dimensions (mm): 49.1 x 29.1 x 29.1 Input Beam Diameter, 1/e 2 (mm): 6.2 Optical Properties Spectral Range: 300 – 1200 Maximum Focused Beam Size (μm): 6200 Minimum Focused Spot Size (μm): 28 Sensor Pixel Size, H x V (μm): 2.74 x 2.74 Pixels (H x V): 4,128 x 3,008 Sensing Area, H x V (mm): 11.31 x 8.24 Sensor Format: 1/1.1″ Frame Rate: 10 Shutter Type: Global Electrical Trigger: Auto or External (8-pin Hirose connector HR25-7TR-8PA(73)) – #86-758 Power Consumption (V): 1.9 – 4.0 Hardware & Interface Connectivity Connector: GigE PoE Power Supply: Power Supply Required and Sold Separately: Power Over Ethernet (PoE) Single Port injector – #68-469 AND 2X of any of the following – #63-863 , #63-864 , #59-231 , #59-232 , #59-233 , #59-234 Environmental & Durability Factors Operating Temperature (°C): +0 to +50 Regulatory Compliance Certificate of Conformance: View ×
