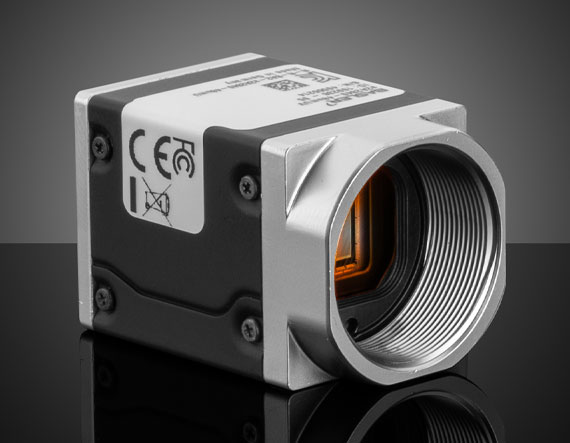

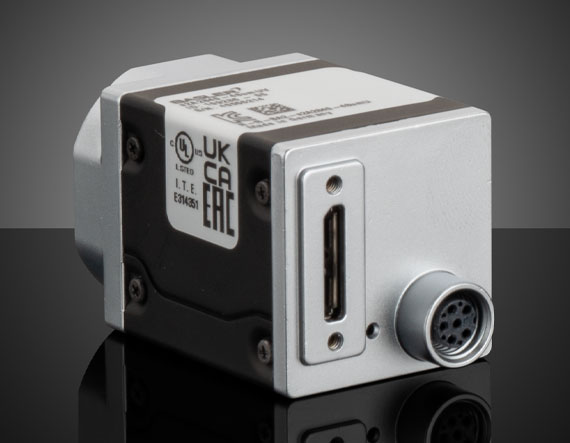

Basler ace2 a2A2840-48umUV Ultraviolet (UV) USB3 Camera

Product Details UV (200 – 400nm) Imaging Capabilities with 8.1MP, 2.3” Sensor Format Compact Housing (29 x 29mm) Framerates up to 67fps Powerful Computer Vision Feature Set with Beyond Features Basler ace2 Ultraviolet (UV) Cameras integrate the Sony IMX487 Pregius S UV Sensor for high sensitivity in the 200 – 400nm UV spectrum. Featuring a compact 29 x 29mm form factor with 8.1MP sensor resolution, global shutter, and a 2/3” sensor format, these cameras are easily integrated into a variety of inspection applications. Basler ace2 Ultraviolet (UV) cameras integrate advanced Beyond software features for more efficient bandwidth use and more flexible scalability of pixel sizes, maximizing camera performance for demanding application requirements. These cameras are available in either GigE, 5GigE, or USB3.0 interfaces for high data throughput and are ideal for inspection applications operating within the ultraviolet (UV) wavelength such as wafer inspection, material sorting, security and surveillance, and solar inspection. Specifications Spectrum: UV General Type: UV Camera Model Number: a2A2840-48umUV Manufacturer: Basler Camera Series: ace2 Physical & Mechanical Properties Dimensions (mm): 36.3 x 29 x 29 (excludes connectors and lens mount) Weight (g): <90 Housing: Full Sensor Image Buffer: Not Specified Sensor Format: 2/3" Resolution (Megapixels): 8.10 Frame Rate (fps): 48.00 Pixels (H x V): 2,856 x 2,848 Pixel Size, H x V (μm): 2.74 x 2.74 Sensing Area, H x V (mm): 7.78 x 7.78 Imaging Sensor: Sony IMX487 Type of Sensor: Progressive Scan CMOS Shutter Type: Global Pixel Depth: 8/10/12 Bit Exposure Time: Freely Programmable Dynamic Range (dB): Not Specified Machine Vision Standard: USB3 Vision v1.0, GenICam Electrical Power Consumption (W): 3.6 Hardware & Interface Connectivity Interface: USB 3.0 Connector: USB 3.0, Micro-B Power Supply: Power over USB or via GPIO with #16-644 GPIOs: 1 opto-coupled input line, 2 general purpose I/O (GPIO) lines Synchronization: Hardware Trigger (GPIO), Software Trigger, or Free-Run Interface Port Orientation: Back Panel GPIO Connector Type: 6-pin M8 Threading & Mounting Mount: C-Mount Mounting Threads: ¼-20 with Tripod Mount Adapter #16-641 Environmental & Durability Factors Operating Temperature (°C): -10 to 50 Storage Temperature (°C): -20 to +80 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
