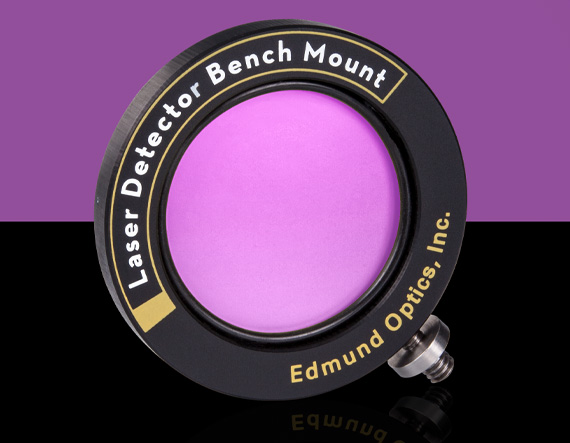

Bench Mounted Laser Detection Head IR

Product Details Full Spectrum Coverage: UV, VIS, IR Series 3 Mounted Formats Have Safe, Non-reflective Encapsulation Unique, No Pre-charge for IR Detection and No Fading During Use Flexibility for Either Transmission or Reflective Viewing Laser Detection Products offer UV, visible, and IR laser users’ greater performance and safety. They reduce problems associated with beam visualization, profiling, and alignment in many applications. Each range is available in three formats. Laser Detection Products’ laminated credit card style is for low-power sources and reflective viewing only. The 25mm disk and clip-on wand style is used when frequent component positioning is required. The removable disk is positional at an optics location to enable precise alignment, while the wand format permits handling into the beam path. The optical bench-mountable head format has a large active area and ¼-20 threaded mounting for standard English post/post holder integration. Specifications General Type: Detection Head Typical Applications: 808nm, 820nm, 830nm, 880nm, 960 – 980nm Laser Diodes, Nd:YAG, 1550nm Telecommunications Physical & Mechanical Properties Active Diameter (mm): 35.00 Outer Diameter (mm): 70.00 Thickness (mm): 8.00 Optical Properties Wavelength: IR Emission Color: Green (550nm), other peaks at Red (673nm) and Blue (400nm) Stimulation Range: Band 1: 790 – 840nm Band 2: 870 – 1070nm Band 3: 1500 – 1590nm Minimum Stimulation, Pulsed: 250 kW/cm 2 @ 1064nm, 7ns, 10Hz Electrical Persistence (Stimulation Removed): 800 μs Minimum Stimulation, Continuous: <2 μW/cm 2 @ 808nm <175 nW/cm 2 @ 960nm <100 μW/cm 2 @ 1550nm Maximum Stimulation, Continuous: 100 W/cm 2 @ 1064nm Maximum Stimulation, Single Pulse: 35 MW/cm 2 @ 1064nm, 7ns Regulatory Compliance Reach 191: Compliant × RoHS 2015: Compliant × Certificate of Conformance: View ×
