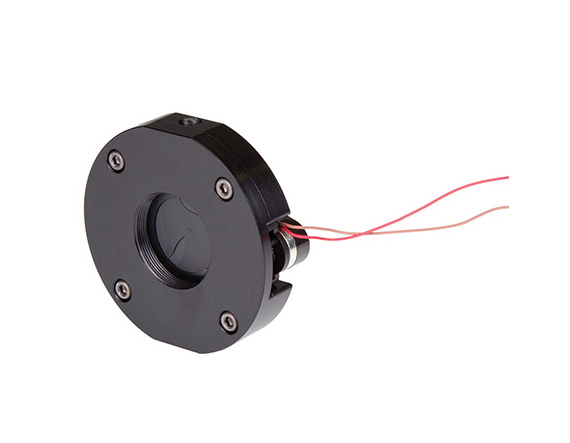

C-mount Electrical Shutter

Product Details Shutter leaves are fragile and should not be handled. Male and Female C- and T-Threads for Easy Integration Simple On/Off Operation with TTL Input M6 and ¼-20 Tapped Holes for Post Mounting The C and T-Mount Motorized Shutters are ideal for controlling detector exposure or for use as optical choppers. The shutters operate in a normally closed position and open when a 5VDC signal is applied to the input. The C and T-Mount Motorized Shutters have been designed to integrate with other C and T-Mount components and include M6 and ¼-20 threaded holes for post mounting to standard metric or English breadboards. To control the opening and closing the shutter, use the On/Off Controller (#87-325) or TTL input. These shutters have male and female C- and T- threads for easy integration. Note: Shutter leaves are fragile and should not be handled or used with any laser. Specifications General Activation Time (ms): 30 Deactivation time (ms): 50 Function: Shutter Operating Life Cycle: 300,000 Physical & Mechanical Properties Outer Diameter (mm): 60.0 Aperture (mm): 20.0 Weight (g): 80 Extension Length (mm): 13.0 Electrical Coil Resistance (Ω): 90 @ 25°C Coil Resistance Tolerance (%): ±10 Operating Frequency (Hz): 12.5 for Full Open/Closed Hardware & Interface Connectivity Operating Voltage (V): 4.5 V ~ 5.5 V DC Output Current (mA): 32.00 Threading & Mounting Mount: C-Mount Thread Type: C-Mount Compatible Post: M6 x 1.0, ¼-20 Environmental & Durability Factors Operating Temperature (°C): -20 to +70 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
