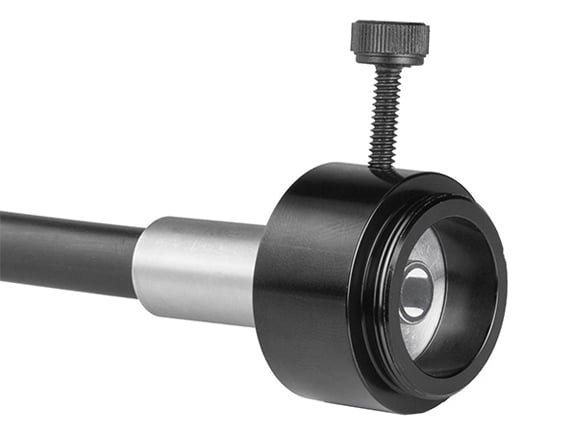

C-Mount Light Guide Mounting Adapter

Product Details Adapt Light Guides to Optical Components C-Mount and T-Mount Versions Available Articulating Arm Package Available These optional Light Guide Mounting Adapters make mounting and integration easy. The versatile mounting adapter is used in some of our machine vision lens assemblies . It connects on one side to fiber optic light guides, using the matching fiber optic adapter , and is secured via a thumb screw. The opposite side features a C-Mount or T-Mount male thread for easy integration with our C-Mount and T-Mount components. Our Articulating Arm Package also provides convenient, adjustable mounting. It includes one 3″ long shaft, two knuckle ball-joints with ¼-20 threaded studs, and a ring clamp. Specifications General Title: C-Mount Light Guide Mounting Adapter Type of Optics: Fiber Light Guide Type: Tube Mount Type of Illumination: Accessory Note: Accessory (Optional) Function: Optic Mount (Fixed) Physical & Mechanical Properties Inner Diameter (mm): 25.4 Total Length (mm): 19.25 Outer Diameter (mm): 29.85 Extension Length (mm): 15.0 Threading & Mounting Thread Type: C-Mount Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 251: Compliant ×
