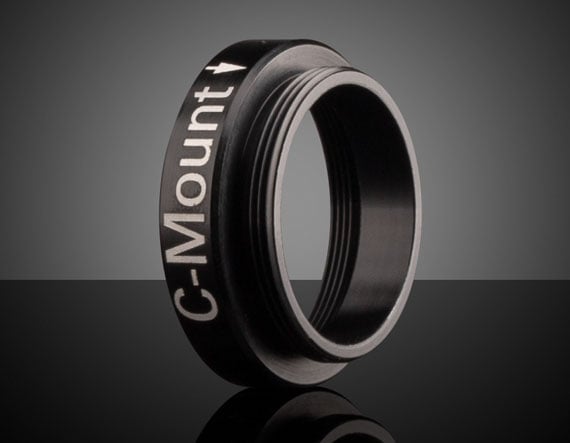

C-Mount Male to SM1 Female Step-Up Adapter

Product Details Adapt All Available Tube System Thread Types to One Another Low Profile Design to Minimize Extension Length Black Anodized Aluminum Construction TECHSPEC C, S, and T-Mount Thread Adapters ensure that all Tube System thread types are compatible with one another. This includes C, S, and T-Mount threads, TECHSPEC Multi-Element Tube System threads (M29 x 0.75), ID1 (1.035” x 40 TPI, equivalent to SM1 thread specifications), and ID05 (0.535” x 40 TPI, equivalent to SM05 thread specifications). All thread adapters have a low-profile design to minimize extension length. They also have a black anodized aluminum construction to ensure minimal reflections within a system. TECHSPEC C, S, and T-Mount Thread Adapters are ideal for system expansion and work with any optical component that uses the supported thread types. Specifications Male Thread: C-Mount (1″ – 32 TPI) Female Thread: 1.035″ x 40 TPI (SM1) Type: Optomechanical Thread Adapter Outer Diameter (mm): 30.0 Thread Type: C-Mount to 1.035 x 40 TPI (SM1) Thread Termination: Male to Female Clear Aperture CA (mm): 22.0 Total Length (mm): 10.0 Extension Length (mm): 6.0 Construction: Black Anodized Aluminum (6061-T6) Function: Thread Adapter Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × REACH 241: Compliant ×
