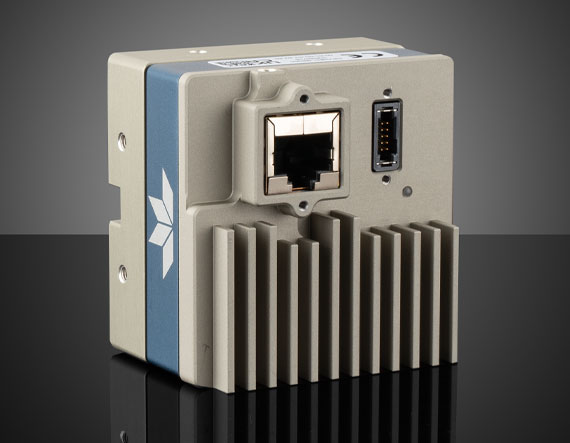

C8205, APS-C Color, Teledyne DALSA Genie Nano 10GigE PoE Camera

Product Details Up to 67.10 MP Resolution with Framerates up to 18.50FPS Supports Trigger-to-Image Reliability (T2IR) Framework Compact (44 x 59 x 59mm), M42-Mount, Lightweight, and Robust All Metal Design Teledyne DALSA Genie Nano 10GigE Cameras are designed with the 10GBASE-T (10GigE) Ethernet Interface and can also run at ethernet link speeds of 1, 2.5, or 5GigE. These M42-mount cameras are available with either the Teledyne e2v Emerald 36M sensor featuring a 1.4” format or the Teledyne e2v Emerald 67M sensor which features an APS-C format. Genie Nano cameras support Sapera LT SDKs and 3rd Party GenICam compliant SDKs allowing fo upgrading current systems without changing application software. Teledyne DALSA Genie Nano 10GigE Cameras support the Trigger-to-Image Reliability (T2IR) framework which is a combination of hardware and software features that work together at a system level to help improve the reliability and reduce the downtime of imaging systems. These cameras are ideal for applications involving Electronics Manufacturing Inspection, Intelligent Traffic Systems, and Aerial Imaging. U.S. Tariff Pricing Notice: Pricing for certain products in this family may reflect recent changes in U.S. tariffs on Canadian-origin products. Prices shown include any applicable tariff-related adjustment; no additional tariff surcharge will be added at checkout. Sapera LT is a free image acquisition and control software development toolkit (SDK) for Teledyne DALSA’S 1D cameras / 2D cameras / 3D Laser Profiler cameras and frame grabbers. Hardware independent in nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators. Sapera LT supports image acquisition from cameras and frame grabbers based on machine vision standards including GigE Vision, CameraLink, CameraLink HS, CoaXpress, and USB3 Vision. Specifications Spectrum: Color General Type: Color Camera Model Number: G6-GC31-C8205 Manufacturer: Teledyne DALSA Camera Series: Genie Nano-10GigE Physical & Mechanical Properties Dimensions (mm): 59 x 59 x 41 (excludes connectors and lens mount) Weight (g): 183 Housing: Full Sensor Sensor Format: APS-C Resolution (Megapixels): 67.10 Frame Rate (fps): 13.80 Pixels (H x V): 8,192 x 8,192 Pixel Size, H x V (μm): 2.50 x 2.50 Sensing Area, H x V (mm): 20.48 x 20.48 Imaging Sensor: Teledyne e2v Emerald 67M Type of Sensor: Progressive Scan CMOS Shutter Type: Global Pixel Depth: 8/10 bit Exposure Time: Automatic, Programmable, or via External Trigger Dynamic Range (dB): 62.00 Machine Vision Standard: GigE Vision v2.0 Electrical Power Consumption (W): 12.5 Hardware & Interface Connectivity Interface: 10GigE (PoE) Connector: 5GigE, RJ45 with Screw Locks GPIOs: 2 opto-isolated input, 3 opto-isolated output Synchronization: Hardware Trigger (GPIO) or Software Trigger Interface Port Orientation: Back Panel GPIO Connector Type: 6-pin Hirose (HR10) Threading & Mounting Mount: M42-Mount Mounting Threads: ¼-20 with Tripod Mount Adapter #34-966 Environmental & Durability Factors Operating Temperature (°C): -20 to +60 Storage Temperature (°C): -30 to +60 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 235: Contains SVHC(s) ×
