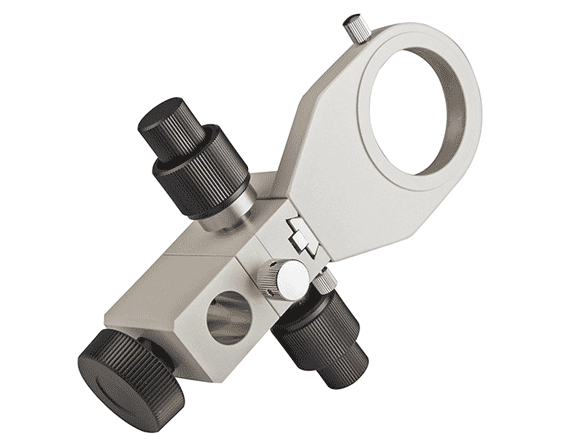

Coarse/Fine Movement, 50mm Dia Thru w/ Rotation, Rack & Pinion

Product Details Coarse or Fine Motion Available Thru Holes for Integrating Lenses ¼-20 Stud for Mounting Cameras Imaging System Bases , Stainless Steel Posts , and Accessories also Available Rack and Pinion Focusing Mounts for Imaging Systems add additional focus ability to imaging systems. Thru Holes are ideal for use with TECHSPEC VZM Zoom Imaging Lenses or other imaging lenses. Rack and Pinion Movement with ¼-20 stud can be used with any compatible camera or imaging lens. Rack and Pinion Focusing Mounts for Imaging Systems are offered with either coarse or fine motion. Imaging System Bases , Stainless Steel Posts , and Accessories are also available. Specifications General Type: Rack and Pinion Mount Note: 50 mm Diameter Thru-Hole Type of Adjustment: Coarse/Fine Movement Physical & Mechanical Properties Dimensions (mm): Rack and Pinion Block: 50.8 H x 28.6 W x 50.8 L Load Capacity (kg): 2.00 Travel (mm): 35 (+23/-12) in Y Travel Per Knob Rotation (mm): 25.5 coarse, 3.2 fine Weight (lbs): 1.31 Type of Movement: Linear (Y), Rotation Optical Centerline from Post (mm): 100.00 Threading & Mounting Mounting Post Hole and Thread: ¾” Diameter Post ¼-20 Tapped Hole Regulatory Compliance RoHS 2015: Exempt × Reach 224: Contains SVHC(s) × Certificate of Conformance: View ×
