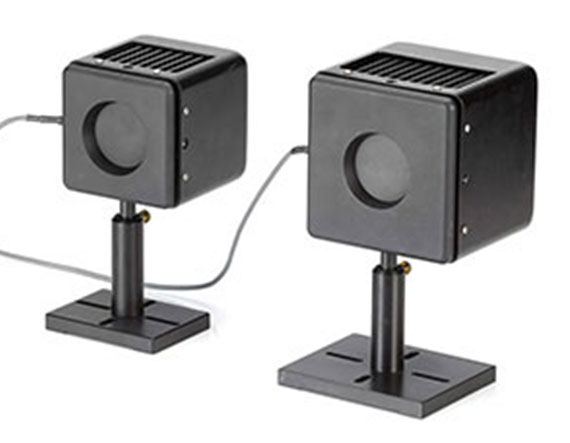

Coherent Fan-Cooled Thermopile Sensor PM200F-50 1098472 | 200W Max Power

Product Details Designed to Measure Laser Power up to 300W Ideal for Applications where Water-Cooling is Not Possible Compact Size for Portability and Use in Field Applications Coherent Fan-Cooled Thermopile Sensors are an excellent option for measuring high-powered lasers in environments where water-cooled thermopile sensors cannot be used. The fan cooling system makes it possible for these thermopile sensors to provide continuous power monitoring of lasers up to 300W. Additionally, the large 50mm aperture size allows for easy laser alignment for quick data acquisition. Coherent Fan-Cooled Thermopile Sensors feature a compact size and easy set up procedure, making them ideal for use in the field or production testing. The high power resolution of these sensors ensures that accurate measurements are made for their large range of accepted laser powers. Specifications General Model Number: 1098472 Type: Meter required Calibration Uncertainty (%): 1 Cooling Method: Fan Compatible Meters: #35-203 , #59-978 , #88-411 , #66-277 Physical & Mechanical Properties Active Diameter (mm): 50 Dimensions (mm): 102 x 102 x 114 Optical Properties Calibration Wavelength (nm): 514 Wavelength Range (nm): 250 – 11000 Wavelength Range (μm): 0.25-11 Electrical Power Resolution (W): 0.1 Power Range: 1W-200W Maximum Power (W): 200 Minimum Power (W): 1 Hardware & Interface Connectivity Computer Interface: DB-25 Regulatory Compliance RoHS 2015: Exempt × Reach 224: Contains SVHC(s) × Certificate of Conformance: View ×
