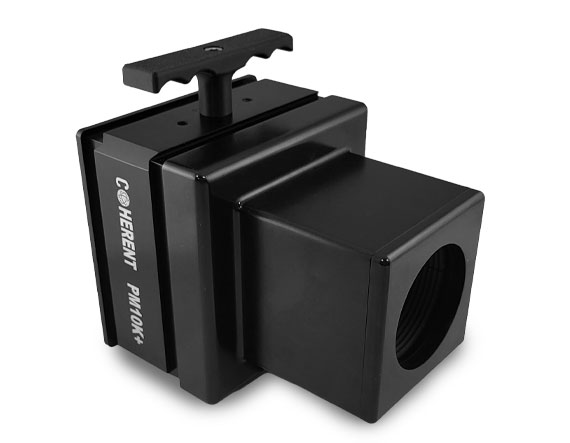

Coherent High Power Water-Cooled Thermopile Sensor PM10k+, Backscatter Shield 2293940 | 10kW Max Power

Product Details Water-Cooling Capability to Withstand Laser Powers up to 15kW Spectrally Flat from the UV to the IR Large 100mm x 100mm Aperture for Accepting a Wide Range of Beam Diameters Coherent High Power Water-Cooled Thermopile Sensors are designed to withstand high power lasers up to 15kW. The water-cooling mechanism reduces the heat transferred to the sensor from input lasers to prevent sensor damage when used with the recommended minimum water flowrate. This makes these sensors ideal for use with >100W power industrial CO 2 and Nd:YAG lasers that exceed the power handling capability of standard thermopile sensors. Coherent High Power Water-Cooled Thermopile Sensors cover a broad wavelength spectrum from the UV to the IR, allowing for them to be used in most laser applications. A power resolution of 1W allows for these thermopile sensors to provide exceptional measurement accuracy of high power lasers. Refer to manual included with purchase for fitting and water flow specifications. Specifications General Model Number: 2293940 Type: Meter or Meterless Calibration Uncertainty (%): ±2 Cooling Method: Water Response Time (s): 10 3s if Speed-up is on Compatible Meters: #35-203 , #59-978 , #88-411 , #66-277 , #23-660 , #23-661 Maximum Incident Energy Density: 600mJ/cm 2 (10ns, 1064nm) Physical & Mechanical Properties Active Diameter (mm): 65 Optical Properties Calibration Wavelength (nm): 1080 Wavelength Range (nm): 190 – 11000 Wavelength Range (μm): 0.19 – 11 Electrical Power Resolution (W): 1 Power Range: 100W – 10kW Maximum Power (W): 10000 Minimum Power (W): 100 Hardware & Interface Connectivity Computer Interface: DB-25 + USB Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 253: Contains SVHC(s) ×
