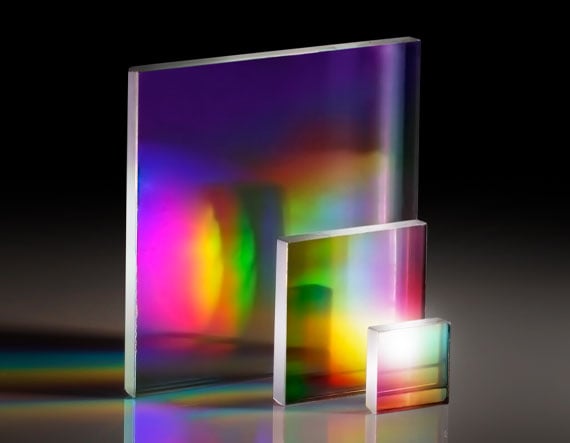

Coherent LightSmyth 1040nm, 1000 Grooves/mm, 31.8 x 12.3mm Transmission Diffraction Grating

Product Details High Diffraction Efficiency (≥90% Absolute) and Low Scatter Polarization Independent and Single Polarization Optimized Gratings Robust Inorganic Materials for Superior Power Handling and Reliability Designs for NIR Wavelengths between 800 – 1800nm Coherent LightSmyth Transmission Diffraction Gratings are manufactured through a precision lithographic wafer-scale fabrication process and provide excellent optical performance, low polarization sensitivity, and low scatter. These gratings have a high diffraction efficiency of ≥90%, minimizing optical losses when used in multi-pass configurations. Gratings designed for near infrared (NIR) wavelengths between 800 – 1800nm are available with all featuring a precision line density uniformity of 0.001 lines/mm. Coherent LightSmyth Transmission Diffraction Gratings are used in demanding applications including Spectral Beam Combining (SBC), LiDAR, optical telecommunications, pulse compression of pico- and femtosecond pulses, and spectroscopy. These gratings contain no organic materials and can be used with high power lasers and in environments up to 500 °C with no effects on performance. Please contact us for custom sizes or OEM requirements. Note: II-VI Incorporated is now Coherent Corp. Specifications General Model Number: 1303874 Type: Transmission Diffraction Grating Note: S-Polarization defined with E-field parallel to the grating grooves Physical & Mechanical Properties Groove Density Uniformity (grooves/mm): 0.001 Dimensions (mm): 31.80 x 12.30 Clear Aperture CA (mm): 30.80 x 11.30 Construction: Multi-Layer Dielectric Binary Etch Grating Length (mm): 31.80 Thickness (mm): 0.95 ±0.050 Width (mm): 12.30 Alignment of Grooves to Edge (°): 0.1 (typical) Optical Properties Groove Density (grooves/mm): 1000 Design Wavelength DWL (nm): 1040 ±20 Minimum Efficiency (%): ≥94 @ 1040nm Angle of Incidence (°): 31.3 ±1 Coating: Dielectric Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Surface Quality: 60-40 Polarization: S and P Regulatory Compliance Certificate of Conformance: View ×
