Coherent OBIS FP 1264457 | 532nm LS 80mW Laser, Fiber Pigtail, FC

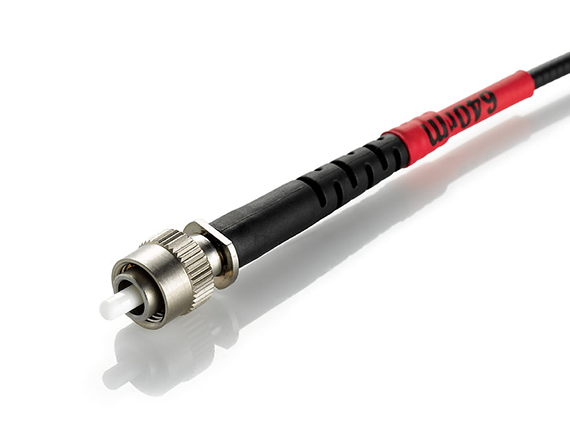

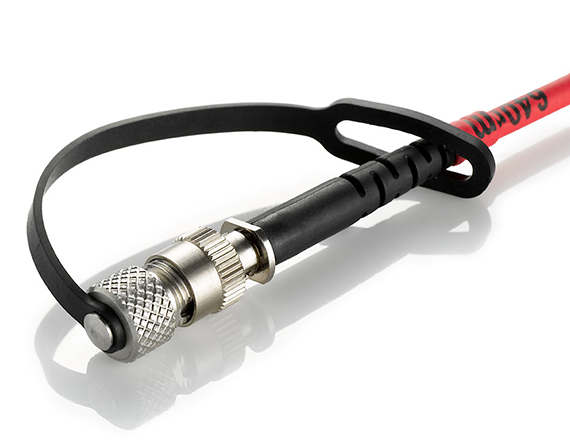

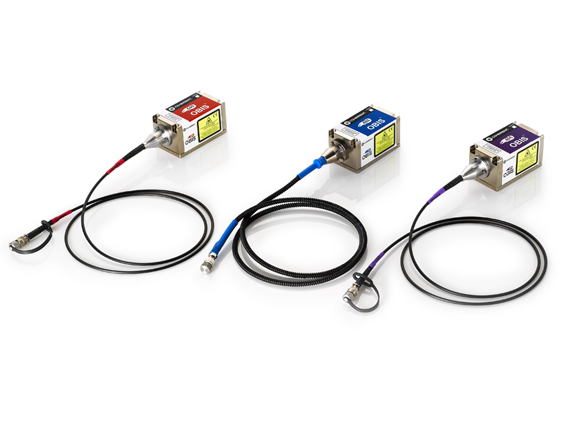

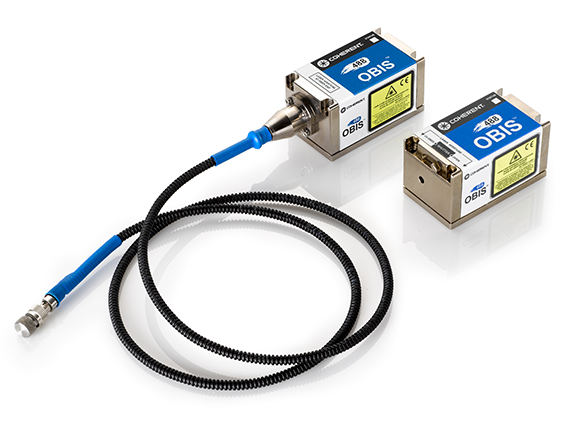

Product Details High Performance OBIS LX/LS Lasers with Added Fiber Optic Capability Permanent Fiber Attachment Extends Lifetime with Guaranteed Power Single-Mode Polarization-Maintaining Fiber with an FC/APC Connector Provide High-Quality and Low-Noise Laser Beam Output Coherent High Performance OBIS LX/LS Laser Systems Also Available Coherent High Performance OBIS LX/LS Fiber-Pigtailed Laser Systems are plug-and-play lasers available in wavelengths from the ultraviolet to the near-infrared with an added fiber attachment. The fiber optic is permanently attached to the laser, providing an extended lifetime of the fiber and guaranteed power consistency. An FC/APC connector terminates the fiber to enable connections to other systems without concern for high noise interference. Coherent High Performance OBIS LX/LS Fiber-Pigtailed Laser Systems produce high-quality, low-noise laser beams and also allow for hands-free operation. These fiber-pigtailed lasers are used in confocal microscopy, DNA sequencing, polymerase chain reaction (PCR) diagnostic instruments, flow cytometry, medical imaging, and instrumentation applications. OBIS Laser System Startup Guide This downloadable PDF provides guidance on interfacing with OBIS controllers and power supplies, mounting and connecting the heatsink, and starting modulation. Download Startup Guide Specifications General Warm-Up Time (minutes): <5 Fiber Cable Type: 5mm Protective Tubing Manufacturer: Coherent Type of Laser: Diode Laser Class - CDRH: IIIb Model Number: 1264457 Physical & Mechanical Properties Fiber Core Diameter (µm): 4.0 (Typical) Optical Properties Polarization: 100:1 Spatial Mode: TEM 00 Wavelength (nm): 532.00 ±2 Mode Quality, M 2 : ≤1.1 Color: Green Fiber Numerical Aperture NA (1/e 2 ): 0.06 Electrical Output Power (mW): 80 Power Stability (%): <2 Modulation Frequency (MHz): Digital: 0.05 Modulation Frequency (kHz): Analog: 100 RMS Noise: ≤0.25% (20Hz to 20MHz) Hardware & Interface Connectivity Power Supply: Power Supply Required and Sold Separately: USA: #87-473 Europe: #87-473 Japan: #87-473 Korea: #87-473 China: #87-473 Output from Fiber: FC/APC; 8° angled Output Type: Fiber-Coupled Environmental & Durability Factors Operating Temperature (°C): 15 to 40 Regulatory Compliance RoHS 2015: Exempt × Reach 224: Contains SVHC(s) × Certificate of Conformance: View ×
