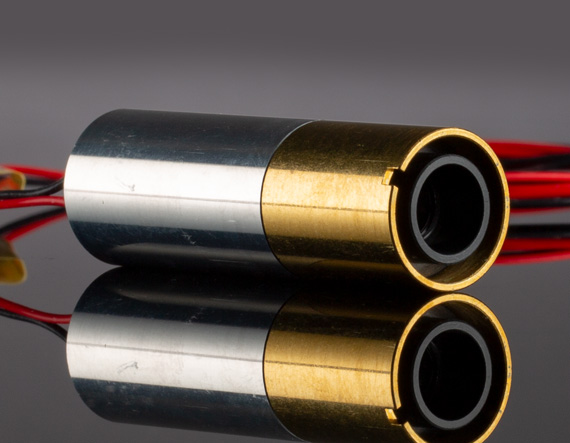

Coherent VLM Laser Diode 0221-005-00 | 2.3mW 670nm

Product Details Robust, High Quality Laser Diodes with Small Form Factor 635nm and 670nm High Visibility Wavelengths Sophisticated Electronic Design for Consistent Beam Properties Coherent Visible Laser Diode Modules feature a compact form factor to help users achieve space saving designs in systems that require a collimated light source. The simple design of these laser diodes allows for quick and efficient incorporation into a wide array of optical systems. A sophisticated electronic design aids in producing consistent laser power and beams. Coherent Visible Laser Diode Modules with advanced AlignLock optical assembly technology provide a remarkable beam-pointing alignment of <4.3mrad, making these laser diodes a great choice for precision applications. These robust, compact laser diodes are typically used in machine vision, medical equipment, and many other industrial applications. Note: Power Supply , sold separately, is required for operation. Specifications General Type: Index Guided Diode, CW Drive Circuitry: Fully shielded, reverse polarity protected Diode Lifetime (hours): 100000.00 Type of Laser: Diode Laser Class - CDRH: IIIa Operating Lifetime (hours): Standard 9V Battery: 5 Physical & Mechanical Properties Weight (g): 20.00 Housing Tolerance (mm): +0, -0.0762 Length of Leads (mm): 914.4 Length of Leads (inches): 36.00 Pointing Accuracy (arcmin): 15.00 Diameter (inches): 0.581 Length (inches): 1.776 Dimensional Tolerance (inches): +0/ -0.003 Optical Properties Wavelength (nm): 670.00 Wavelength Tolerance (nm): ±10 Wavelength Stability (nm/°C): 0.2 - 0.3 Beam Astigmatism (μm): <10 Beam Diameter (mm): 3.0 Beam Divergence (mrad): 0.35 Color: Red Electrical Output Power (mW): 2.3 (Maximum) Output Power Tolerance (%): ±4 ESD Protection: MIL Spec. Std. 1686B, Class 2 Current (mA): 55 Typical, 70 Maximum Hardware & Interface Connectivity Power Supply: Power Supply Required and Sold Separately: USA: #91-754 Europe: #35-201 Japan: #91-754 Korea: #33-771 China: #91-754 Power Requirement: 5-10V DC Electrical Leads/ Pin Connections: red (+), black (-), case (+) Output Type: Free Space Environmental & Durability Factors Operating Temperature (°C): -10 to +40 Storage Temperature (°C): -40 to +80 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View ×
